AUX Q Series User Manual

21
22 W

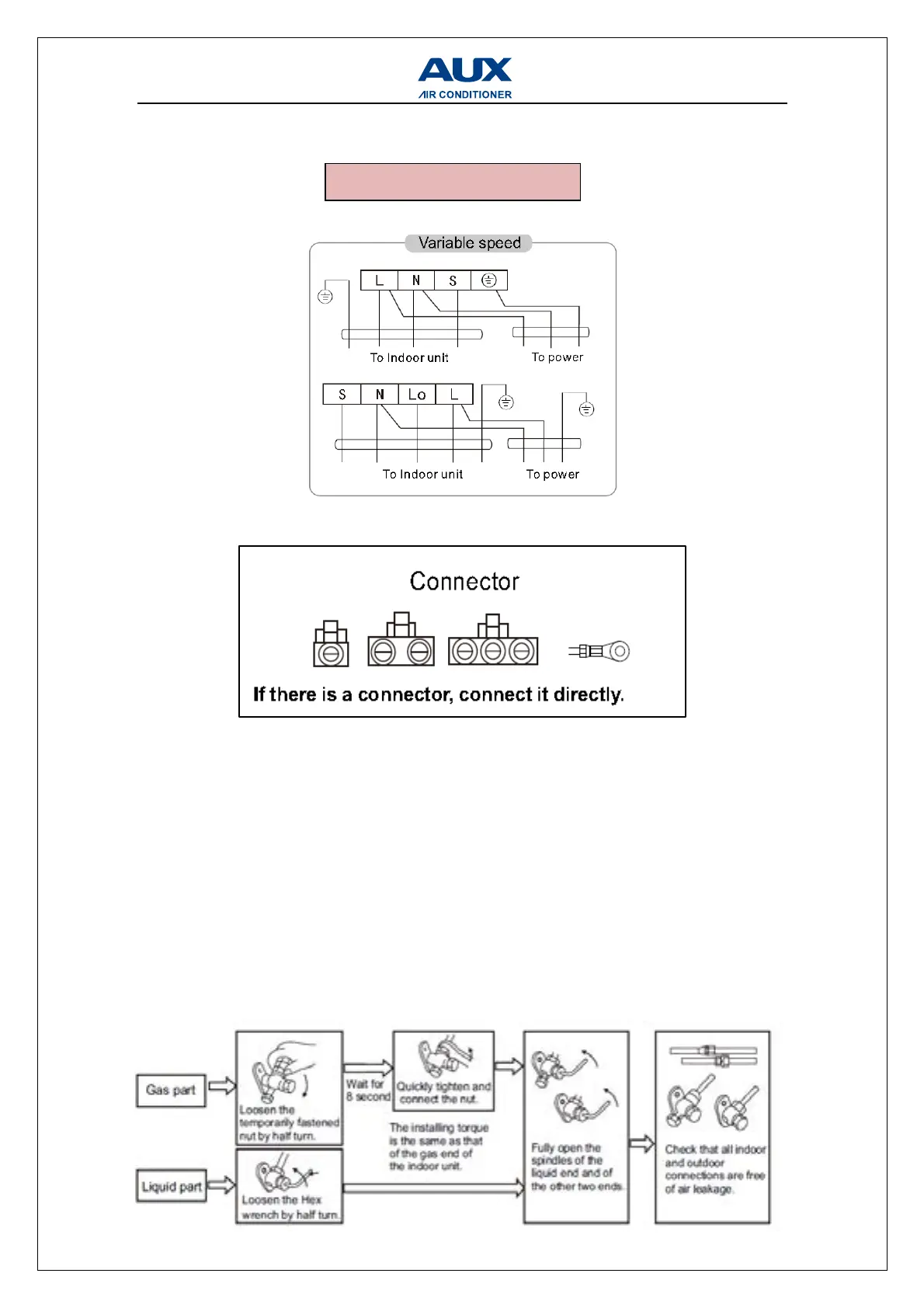

iring diagram
NOTE:
※ This manual is usually includes the wiring mode for the different kind of A/C. We
cannot exclude the possibility that some special type of wiring diagrams are not
included.
※ The diagram are for reference only. If the entity is difference with this wiring
diagram, please refer to the detailed wiring diagram adhered on the unit which you
purchased.
23 Expelling the air
★Outdoor unit refrigerant discharging method
After the pipe side connection is complete, proceed as follows.
W
ir
ing Diagram

AUX Q Series Specifications

General

Refrigerant	R32
Energy Efficiency Class Cooling	A++
Energy Efficiency Class Heating	A+
Type	Split System
Features	Sleep Mode, Turbo Mode, Self-Cleaning
Energy Rating	5 Star
Filter Type	Anti-Bacterial Filter
Warranty	5 Years
Cooling Capacity	12000 BTU/h
Heating Capacity	12000 BTU/h
