AUX Q Series User Manual

59
26 Fa
ult Diagnosis by Symptom
①
No Power Display
(1) Items
a) Check if the input voltage is correct?
b) Check if the AC power supply connecting is correct?
c) Check if the output voltage of the manostat L7805 (IC2) is correct?

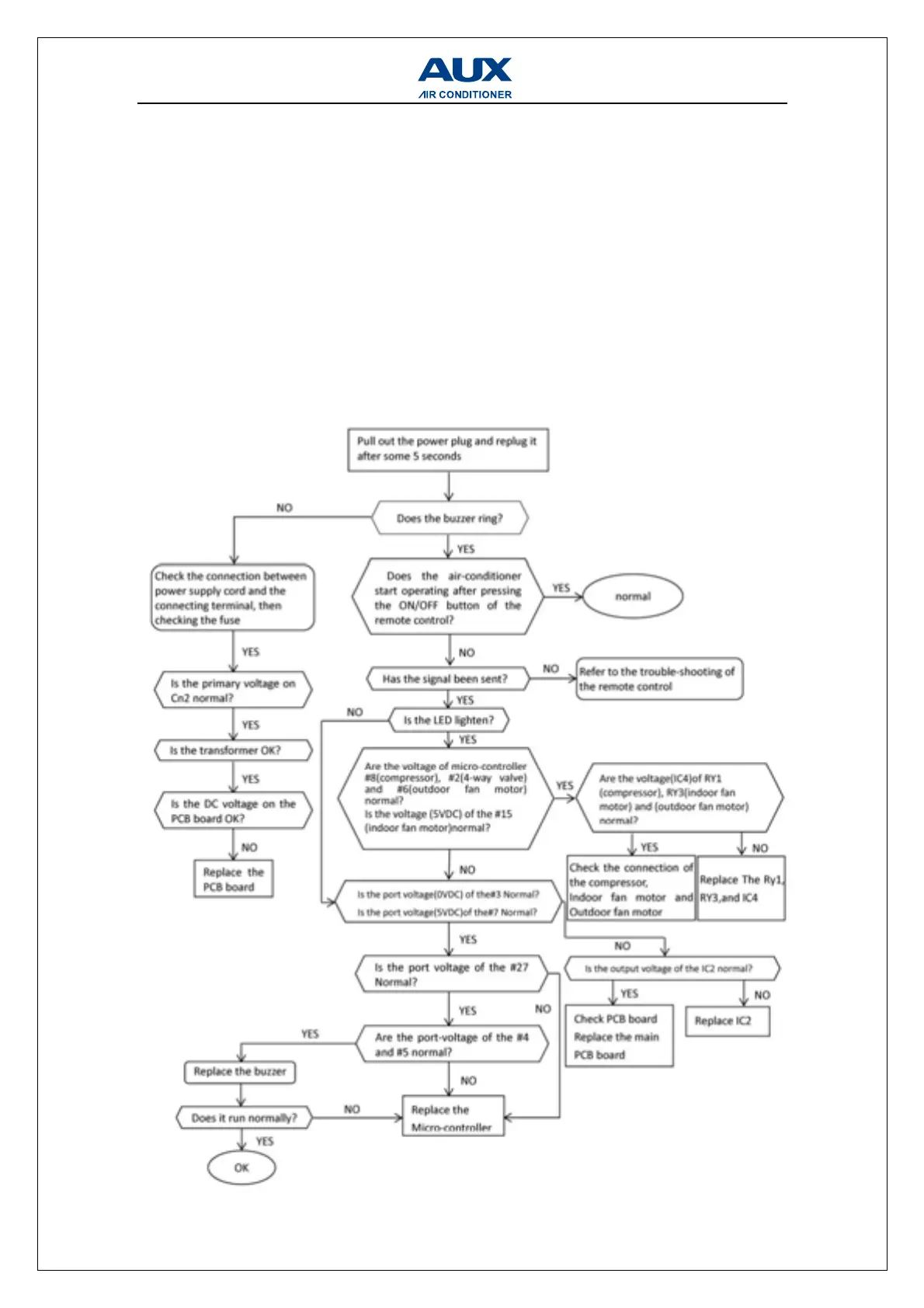

(2) Trouble shooting procedure

AUX Q Series Specifications

General

Refrigerant	R32
Energy Efficiency Class Cooling	A++
Energy Efficiency Class Heating	A+
Type	Split System
Features	Sleep Mode, Turbo Mode, Self-Cleaning
Energy Rating	5 Star
Filter Type	Anti-Bacterial Filter
Warranty	5 Years
Cooling Capacity	12000 BTU/h
Heating Capacity	12000 BTU/h
