50 Optional Equipment (for qualified installers only)
© Travis Industries 4101110 100-01256_000

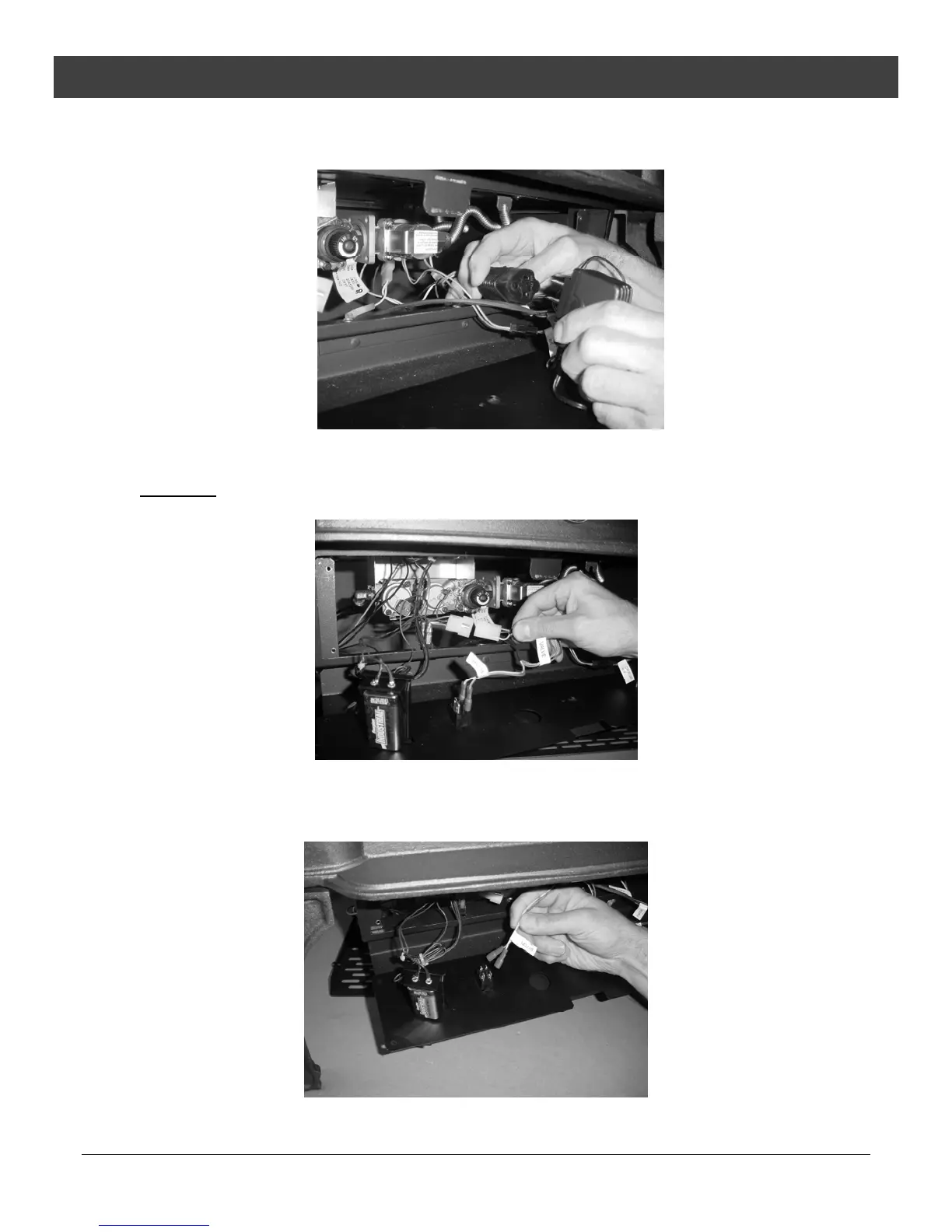

3 Unplug the ac adapter from the power harness (see Figure 5). You can leave the ac adapter plugged
into the wiring harness.
Figure 5
4 Disconnect the molex connector leading to the gas control valve (see Figure 6).
WARNING
: The tabs on the gas control valve are fragile. Take care when removing the molex
connector to not pull or damage the wires or tabs.
Figure 6
5 Disconnect the two leads on the back of the control panel for the IPI / CPI switch (continuous pilot /
greensmart pilot – see Figure 7).
Figure 7
