6 Disconnect the comfort control valve connection (see Figure 8). Disconnect the burner control
connector from the fireplace burner control (see Figure 9).

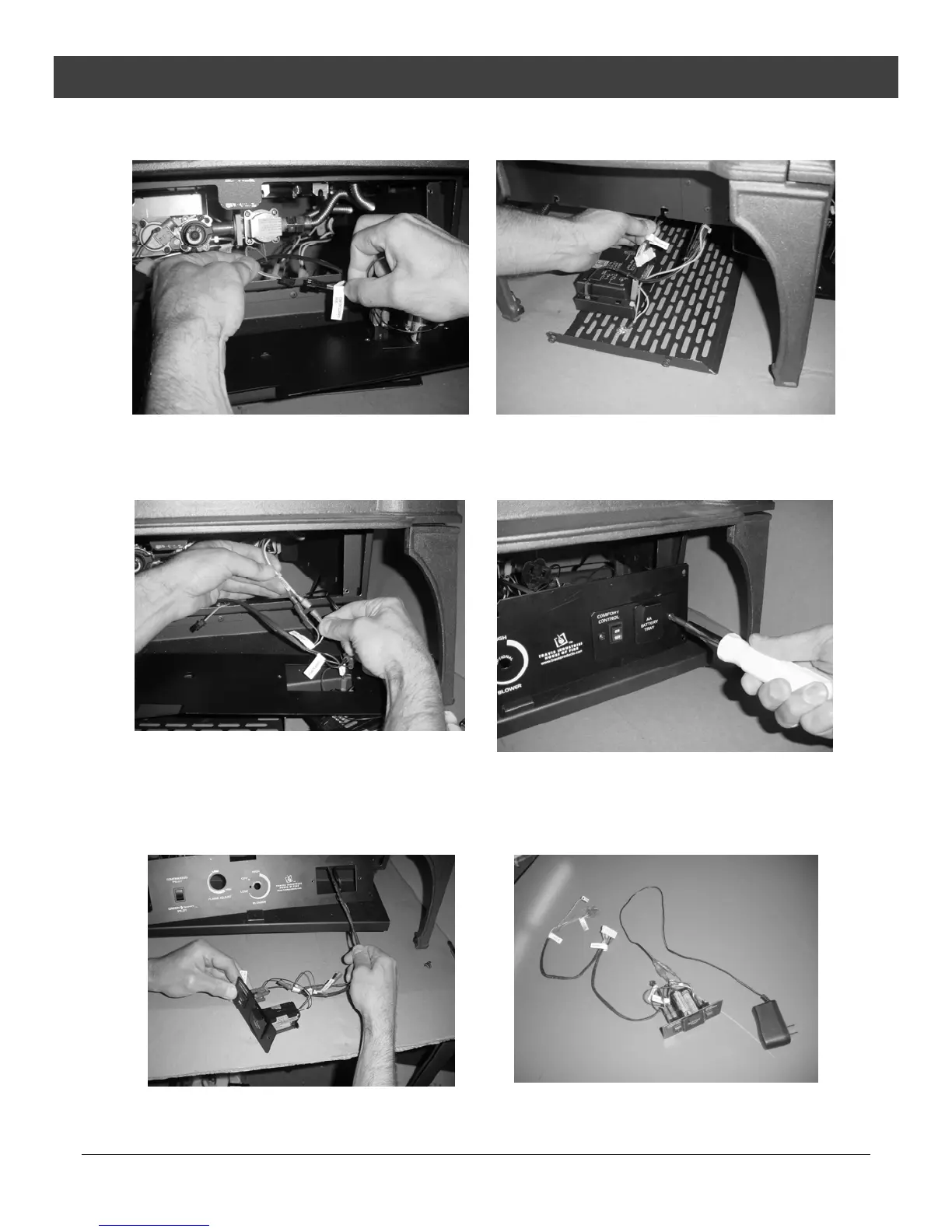

Figure 8 Figure 9
7 Disconnect the on/off switch wires (labeled ON/OFF - see Figure 10). Unscrew the on/off/battery
plate from the control panel (see Figure 11).
Figure 10
Figure 11
8 Pull the plate and wiring forward (see Figure 12). Un-hook the wires from the wire-locks and remove
the wiring harness, plate, battery holder, and ac adapter (see Figure 13). These items may be
discarded.
Figure 12
Figure 13
