Avdel HydraPac HP21 - General Assembly and Parts List for Valve Set

16

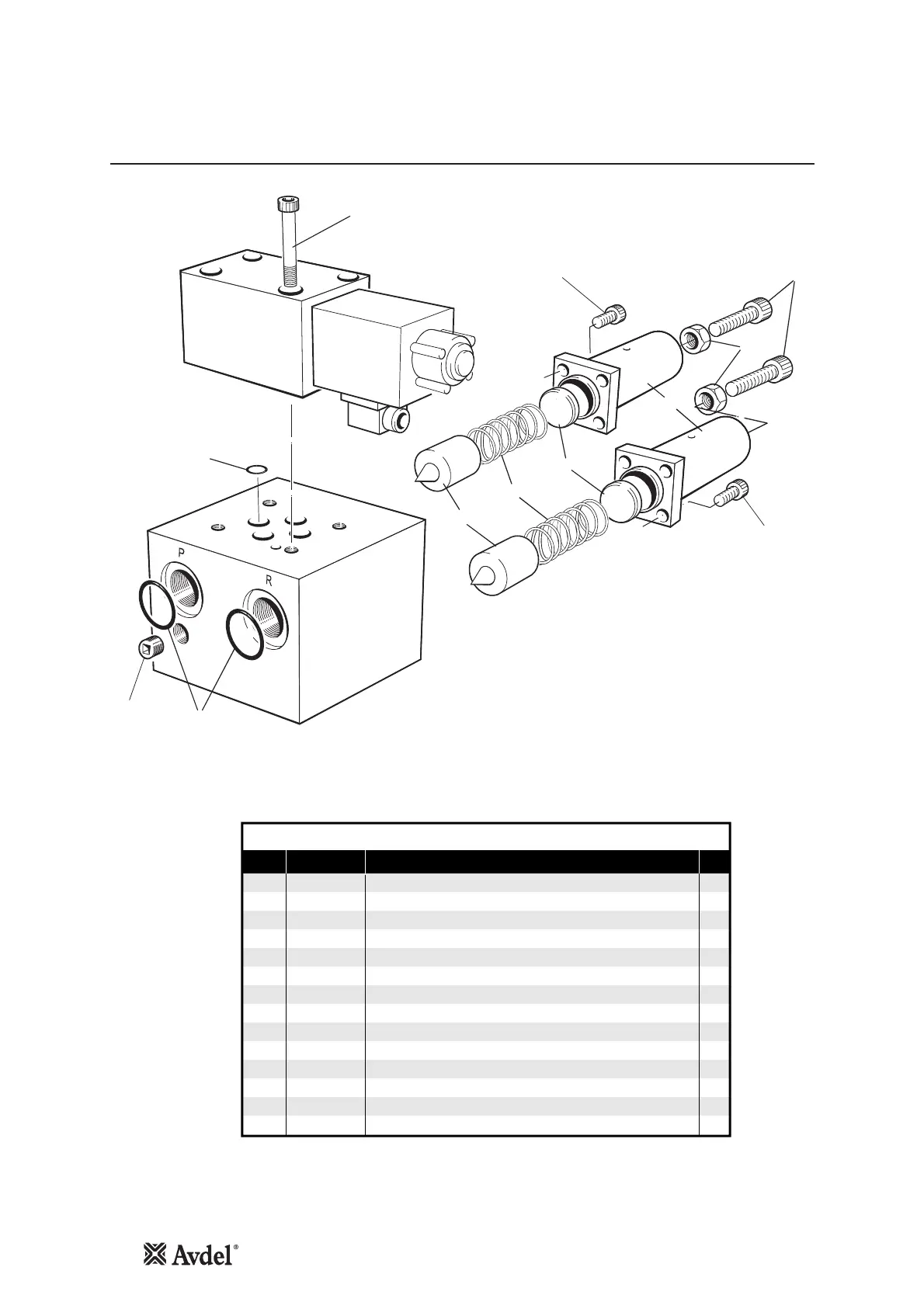

General Assembly and Parts List for Valve Set
COMBINATION VALVE
ASSEMBLY
112
111
113
104
103
103
102
105
106
107
109
4
108
3A 12Vdc
3B 24Vdc
DIRECTIONAL VALVE
ASSEMBLY
ITEM PART Nº DESCRIPTION QTY
 VALVE SET PARTS LIST
102

CS26

SOCKET HEAD CAP SCREW

4
103

CS12

SOCKET HEAD CAP SCREW

8
104

CS34

SOCKET HEAD CAP SCREW

2
105 XN014

HEXAN NUT

2
106

CO41

SPRING DOME

2
107

CO42

BEARING PAD

2
108

CO40

SPRING

2
109

CO44

PLUNGER

2
111

R210

'O' RING

2
112

MS01

PLUG

1
113

R012

'O' RING

4
3A

C165

DIRECTIONAL VALVE 12V DC

1
3B

C166

DIRECTIONAL VALVE 24V DC

1
4

CO27

COMBINATION VALVE

1
