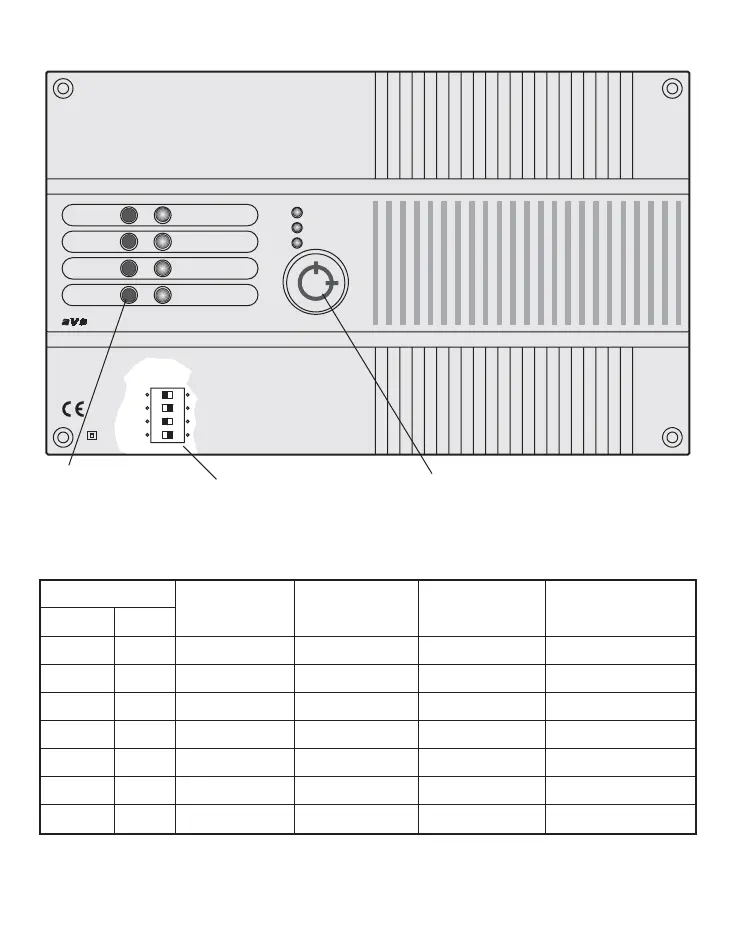

DESCRIPTION OF THE FRONT PANEL AND INDICATIONS (Fig. 1)
AF53904
UNITA' CENTRALE / CENTRAL UNIT
POWER
ON
TAMPER
ON
230 V~ 50 Hz / 80 mA
EXCLUDE ZONE B
EXCLUDE ZONE A2
EXCLUDE ZONE A1
EXCLUDE ZONE C
ON
1 2 3 4
sw
sw
sw
sw
Mechanical key
Timer microswitches
Zone exclusion
pushbuttons
LED
ON OFF
Flashing Flashing
Function Colour fast slow
Power Green Mains present Mains absent
On Green Control panel ON Control panel OFF
Tamper Red Tamper open Tamper closed Alarm stored
Zone A1 Red Zone 1 open Zone 1 closed Zone 1 excluded Zone 1 alarm stored
Zone A2 Red Zone 2 open Zone 2 closed Zone 2 excluded Zone 2 alarm stored
Zone B Red Zone 3 open Zone 3 closed Zone 3 excluded Zone 3 alarm stored
Zone C Red Zone 4 open Zone 4 closed Zone 4 excluded Zone 4 alarm stored
The table shows the meaning of the visual indications seated on the control panel:
Note: The alarm indication LEDs are always OFF when the control panel is ON.
The fast flashing indication prevails over the slow flashing mode.
