REMOTE ACTIVATION POINT (AF45342)
Refer to page 22 (code AF994) of the present manual for the description of the remote
activation point
MAINS AND BATTERY CONNECTIONS
The control panel 12v/1.2Ah internal battery is composed of two 6v/1,2 Ah (cod. AF910) batteries con-
nected in series in order to obtain one battery. Connect the positive pole (red) of one battery to the nega-
tive pole (black) of the other one using the connection cable supplied with the control panel.

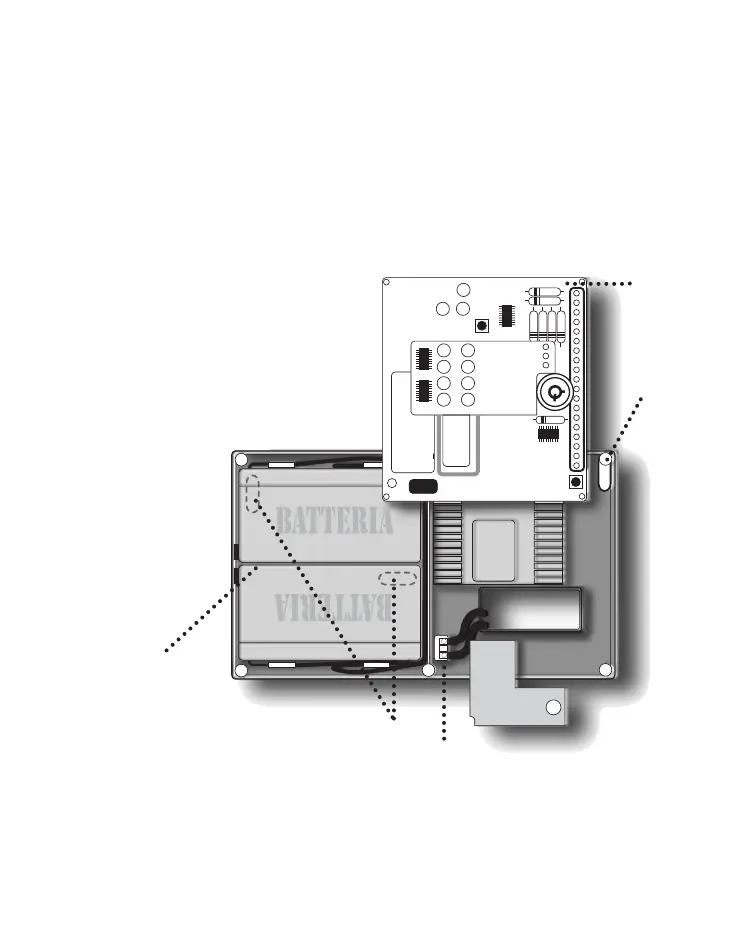

Then, insert the batteries in their position as shown in fig. 2. Finally, connect the mains (230Vac) to the
two terminals seated on the power supply board, as shown in fig. 2.
Wall fixing hole
Wall fixing
hole
Main board
battery seat
230vac connection
Fig. 2
CONNECTION TERMINAL BLOCK (page 30) AND APPLICATION DIAGRAM (page 1b)
The terminal block is composed of No. 21 screw terminals with bracket tightening of the conductor;
rating 2.5 mm
2
.
