16
MXA920 Ceiling Array Microphone
Web Application

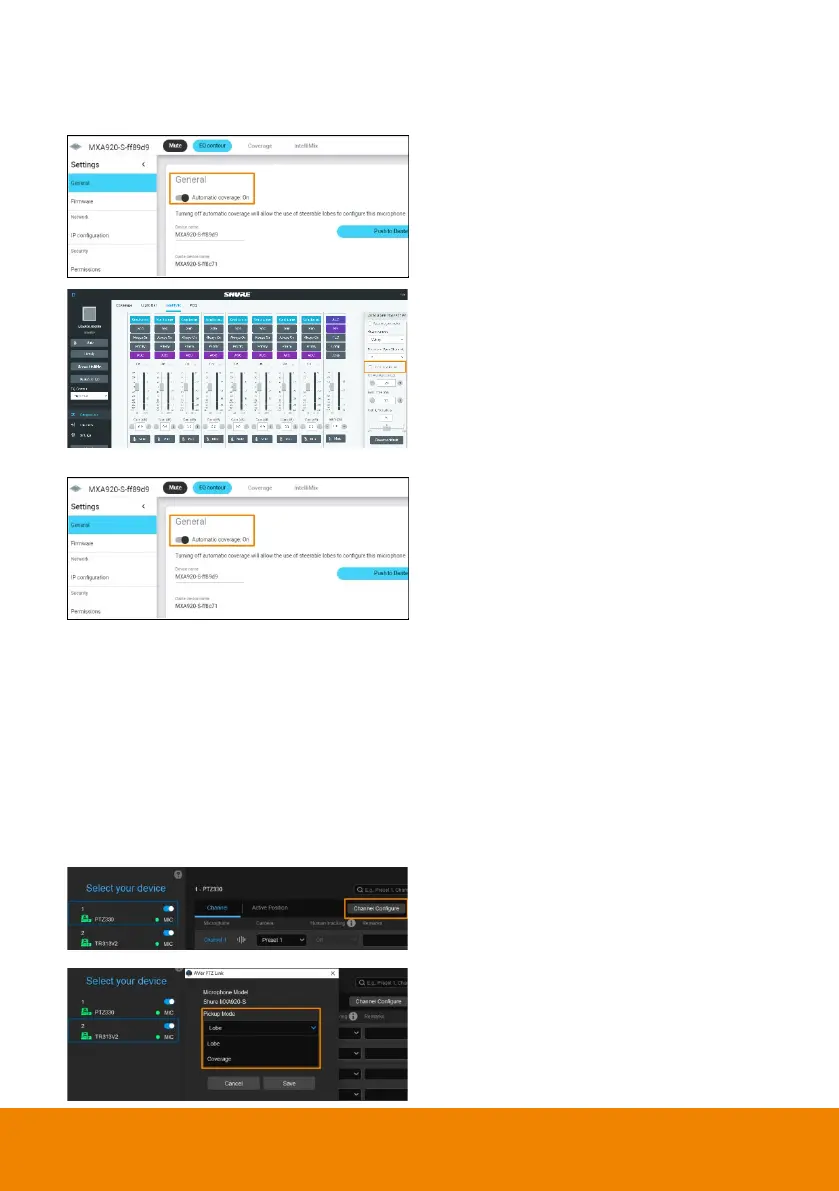

To manually position up to 8 lobes:
1. Go to Settings > General >
Automatic coverage.
2. Turn off Automatic coverage.
3. Go to IntelliMix > Automixer
Properties > Deselect Leave last
mic on.
To add a mix of up to 8 dynamic and
dedicated coverage areas:
1. Go to Settings > General >
Automatic coverage.
2. Turn on Automatic coverage.
The default setting is a 30 by 30
foot (9 by 9 meter) dynamic
coverage area.
3. To add more coverage areas, go to
Coverage > Add coverage.
PTZ Link
4. Click Channel Configure on the
main page.
5. Select a Pickup Mode from the
drop-down list:
Lobe: The lobes you have
positioned in the MXA920's
