10
1
8
RS422
[Note]
Use cat5e spl
itter for multi-camera connection.

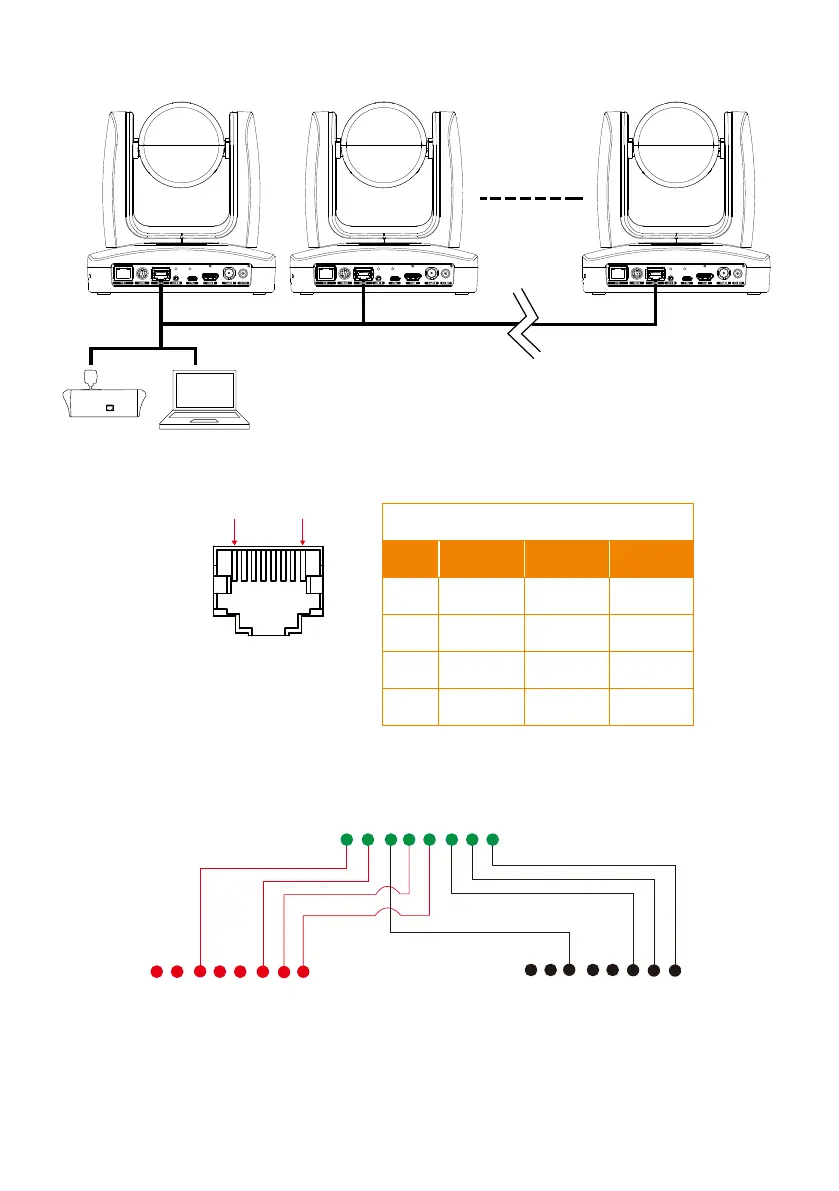

Cat5e splitter pin assignment:
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Camera
Camera/Joystick
Camera/Joystick
Laptop
Joystick
RS422 cable
(Not inculded)
RS422 Pin
No.
Pin
No.
Pin
1
TX
-
5
TX+
2
TX+
6
RX+
3
RX
-
7
RX
-
4
TX
-
8
R
X+
16
18
Table of Contents
Table of Contents
5
Package Contents
8
Product Introduction
9
Sources
9
Overview
9
LED Indicator
10
Pan and Tilt Angle
10
Dimension
11
Device Connection
12
Video Output Connection
13
RS232 and RS422 Connection
14
Audio Input Connection
18
Poe Connection
19
Install Cable Fixing Plate
20
Ceiling Installation
21
Installation for Auto Tracking Performance
22
Remote Control
23
Setup the Camera
25
OSD Menu
25
Setup IP Address of the Camera
25
Static IP
25
Dhcp
26
OSD Tree
27
Camera
27
Advanced Setting
28
Video Output
28
Network
28
System
29
Web Setup
30
Using the Aver Ipcam Utility to Find the Camera
30
Using Aver PTZ Management Software to Find the Camera
31
Make a Connection to the Camera Via Browser
32
Live View
33
Pan-Tilt-Zoom Control
33
Focus
34
Manual Pan-Tile-Zoom and Preset Speed Adjustment
34
Preset Setting
35
Tracking Control
35
Click Tracking Function
36
Camera Settings
37
Exposure
37
Image Process
37
Video & Audio
38
Get 4K (2160P) Output
38
Network
41
RTMP Setting
41
Using RTSP Connect to Camera
42
SRT Stream
43
Tracking Setting
45
Presenter Mode
45
Zone Mode
47
Hybrid Mode
49
Quick Setup for Tracking
51
Presenter Mode
51
Zone Mode
51
System
52
Upgrade Firmware
53
VISCA RS232 Command Table
54
Visca over IP Settings
55
CGI Command
56
Specification
58
Tr311
58
Tr311Hn
61
Tr311N
64
Tr313
68
Tr313N
71
Tr331
75
Tr331N
78
Tr333
82
