31

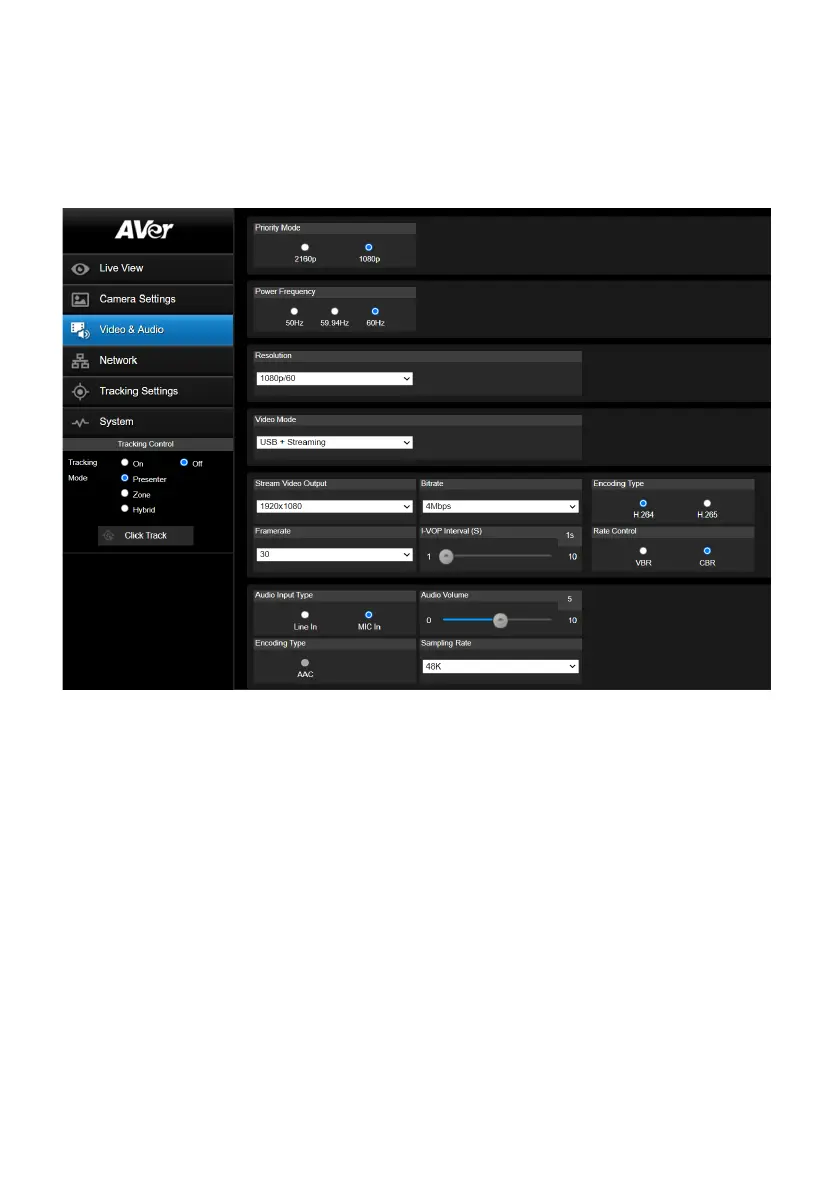

Video & Audio
The user can setup Video Mode, Video output, Framerate, Bitrate, I-VOP internal, Encode type, Rate
control, Audio input type, Audio volume, and Sampling Rate.
Video mode in the stream only, the frame rate is up to 60fps and in USB+ Streaming mode is up to
30fps.
Get 4K (2160p) output
1. Make sure that your HDMI monitor and cable support 4K (HDMI2.0 or above), select 2160p at
Priority Mode via either web or OSD menu. Select 2160p/30 resolution at OSD menu to get 4K
HDMI output. (3G-SDI does not support 4K)
2. Select “USB Only” at Video Mode to get 4k USB output(live stream will be off)
3. Select “Stream Only” at Video Mode to get 4k live stream output (USB will be disabled)
