14 XR Series Installation Instructions
3 Installation
3. Fasten the XR display to the pole mounting bracket as outlined in the
mounting instructions (See Figure 3.6).

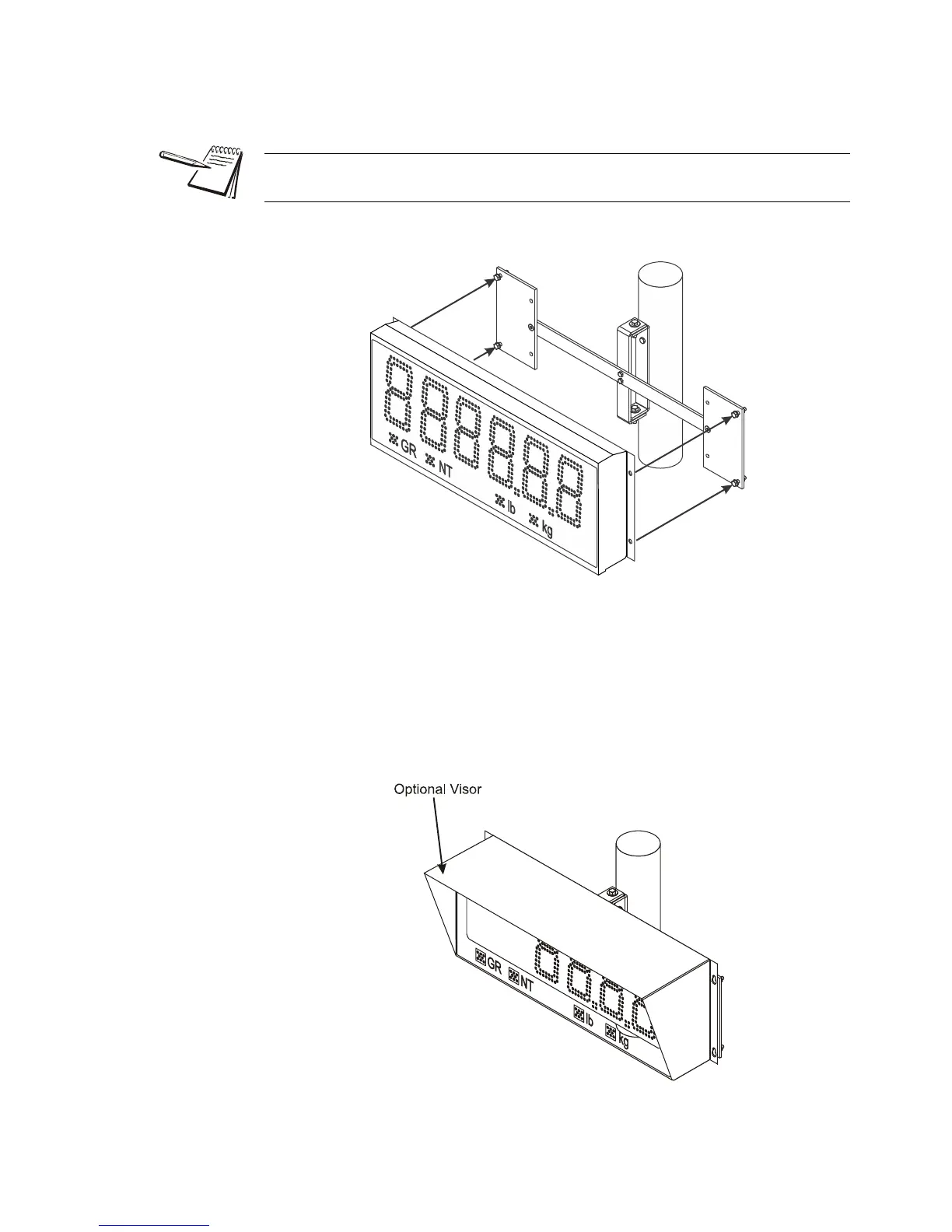

Figure 3.6 Pole mounting bracket
Visor Option
1. Loosen the mounting hardware on the main enclosure 1/8th inch.
2. Rest the visor’s mounting brackets on the bolt between the bolt head and the
front of the side mounting plates.
3. Re-tighten the mounting hardware.
Figure 3.7 Optional visor
The pole mounting bracket allows use of poles or beams up to eight inches in
diameter.
