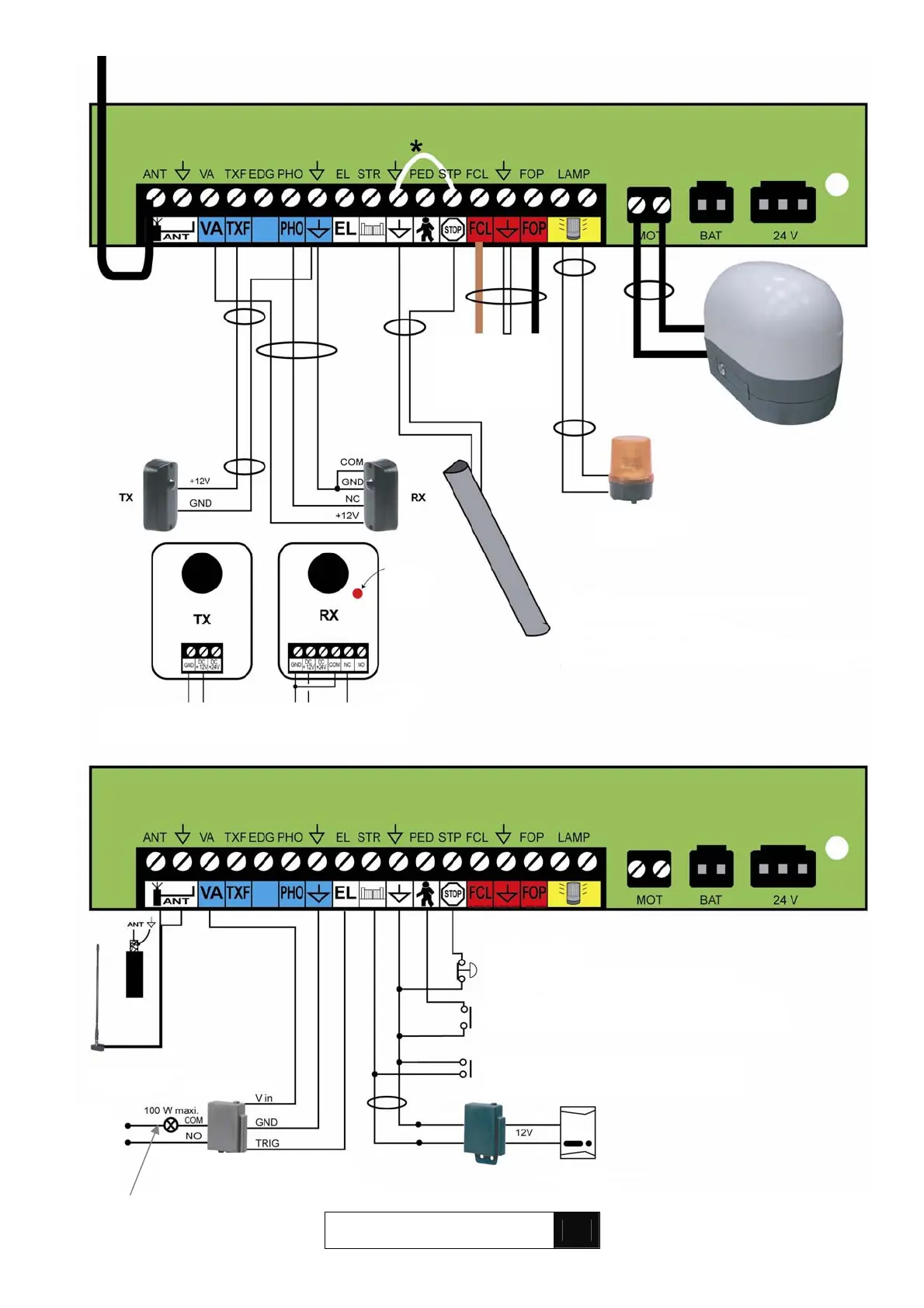

See page 12 for the
motor wires
WE 8111 Bis, supplied
ATCR 2, supplied
Optional
antenna
WEATAN 2
Manual control
(
button
,
door
p
hone
,
etc.
)
Partial o
p
enin
g
control
EMERGENCY STOP
Button with normally closed contact
(The kit is supplied with the 2 terminals bridged. Remove
the bridge if you install a button or an emergency bar)
Optional emergency bar instead of our series
connected with a Stop button:
*Remove the wire linking the 2 terminals.
Touching the emergency bar stops the gate.
Remove the obstacle and reset with the remote
control.
12V flashing beacon
No specific polarity
Motor limit
switches, see
p.12
Control for lighting the
gate's path.
white
red
Neutral
Live
230 V~
protected
blackwhite
2-wire door phone or video
door phone
Automatic mode is not possible if photocells are not fitted
If the red LED inside the RX
p
ortion is lit, the
p
hotocells are ali
g
ned.
Do not forge
The shunt between
COM and GND
Alignment
LED: ON if
alignment
correct
COM TXF COM VA PHO
Lamp : 100 W max.
Delay fixed : 2 min 30
