WEAT C2N – V1 - EN 12
RIGHT
MOTOR
ASSEMBLY
LIMIT SWITCHES: brown - white - black
MOTOR WIRES: red-black
FOP
LIMIT SWITCH
MOTOR WIRES: black-red
LIMIT SWITCHES: brown - white - black
LEFT
MOTOR
ASSEMBLY
LIMIT SWITCH
To
p
view
V
iew from motor side
V
iew from motor side To
p
view
FCL
FOP

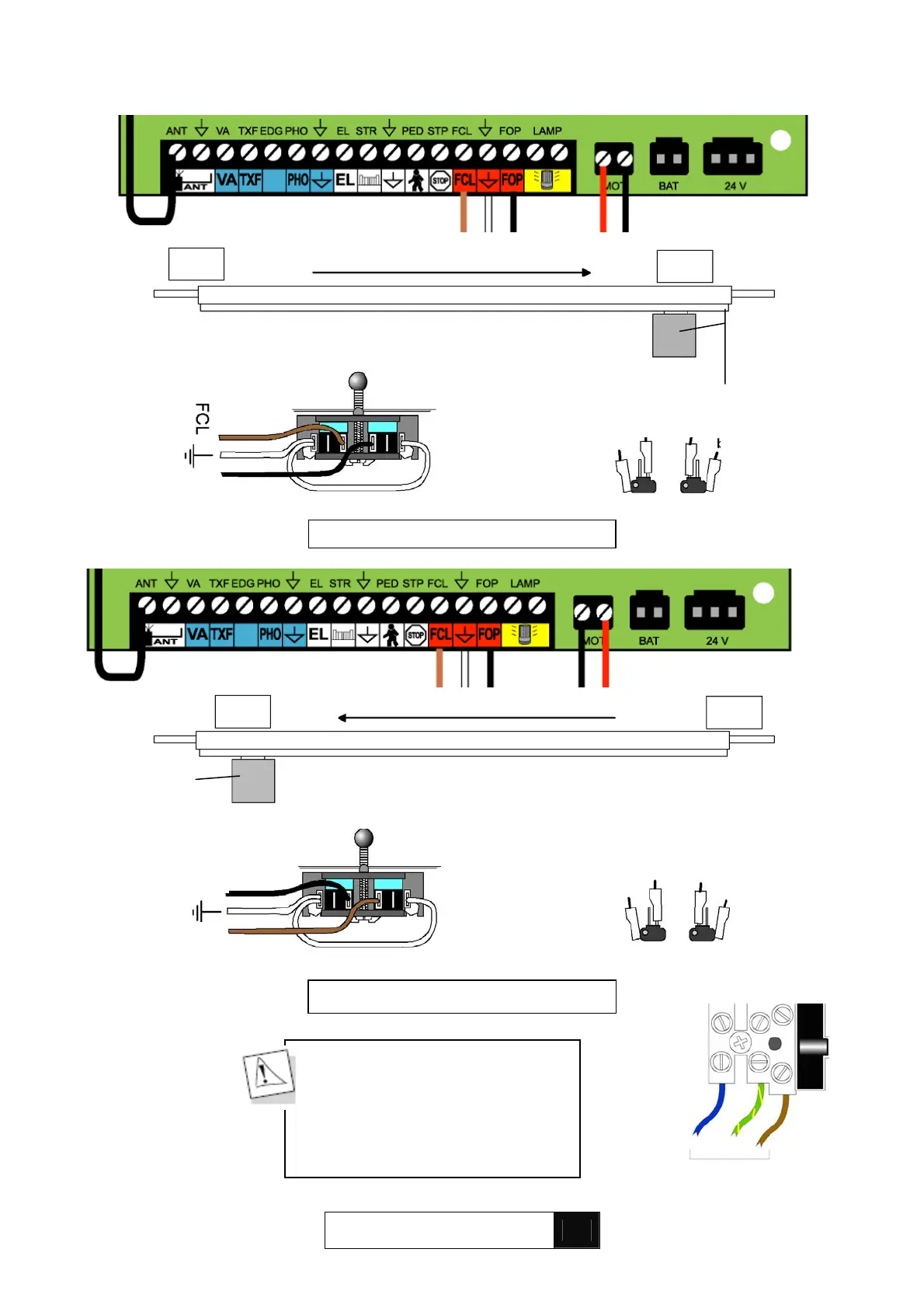

Limit switch connection: ori
g
inal
OPENS TO RIGHT
OPENS TO LEFT
white
brown
black
white
white
brown
black
white
After protecting the earthed power
supply with a 10 A two-pole circuit
breaker and a 30 mA Ground Fault
Circuit Interrupter, connect it to the
terminal block inside the motor
assembly.
Neutral
Live
230 V~ mains
p
ower su
pp
l
y
earth
