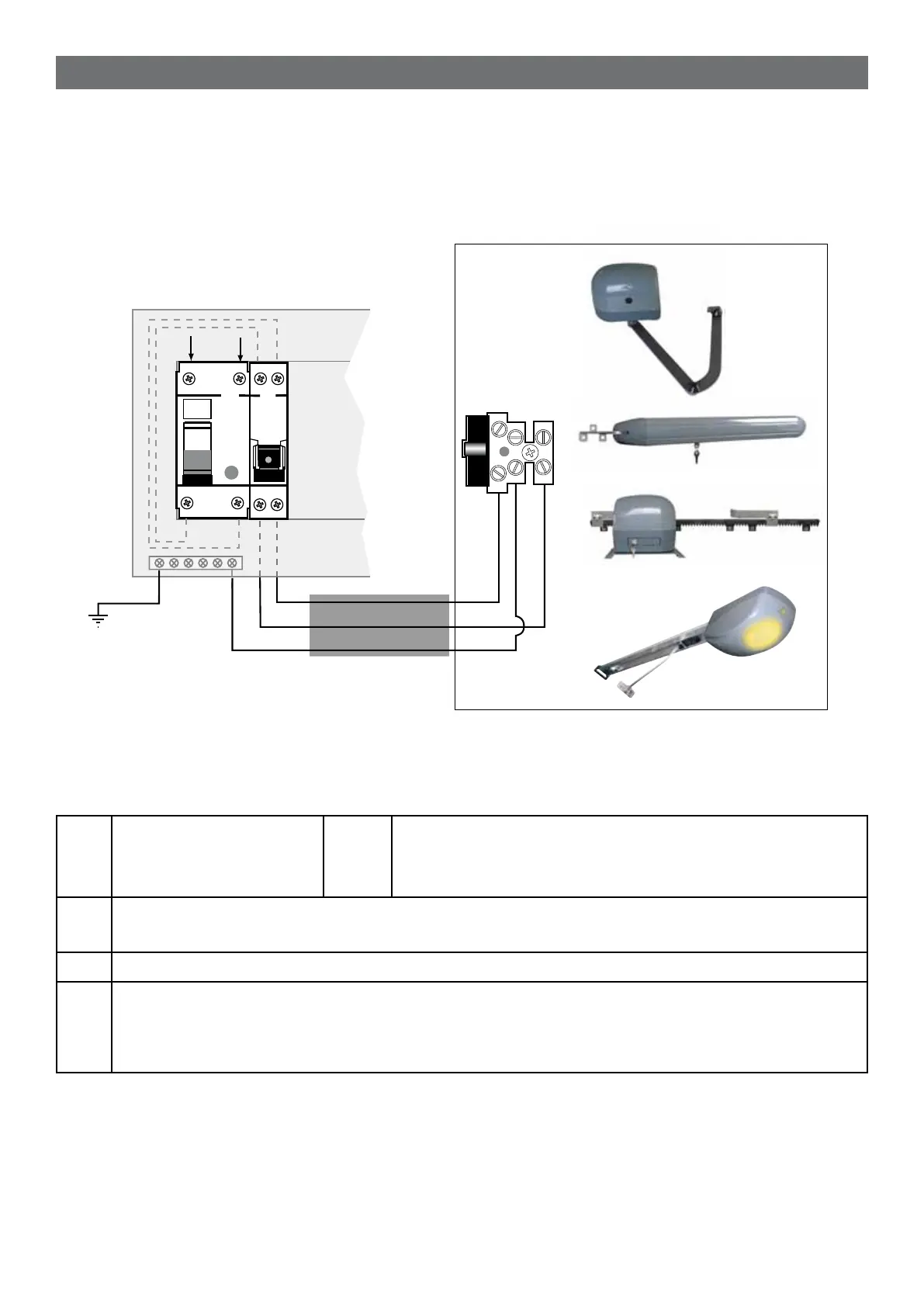

Avidsen WEAT C2N - “Electrical” connection of your automatic system

WEAT C2 N - V1
A
B
D
C
Ph NT
T
WEAT B2N
WEAT G2N
WEAT V2N
WEAT C2N
30 mA
10 A
230 VAC
N
Ph
TEST
The connection must be made according to standards in force* in the country where the
automatic system is installed, for wiring as well as for protection of people and goods.
(You must contact a qualified and experienced person).
The protection must be accessible and, in case of shutdown, make sure that an accidental re-
connection is not possible.
N
T
Neutral (blue wire)
Earth connection
(yellow and green wire)
Ph
Phase, at the level of the automatic system connect it
to the terminal near the fuse “D”
A
30 mA differential, to be tested once a month with the “test” button. (Ground Fault
Circuit Interrupteur)
B
Protection by 10 A circuit-breaker (2 poles: neutral and phase)
C
Power cable and sheath, according to the country where installed (RO2V cable of 3 x
1.5 mm² up to 30 metres and 3 x 2.5 mm² above in a 40 mm diameter orange cable
duct, for France)
* NF C 15-100 for France
“Electrical” connection of your automatic system
