600-00105-000 Rev 01 -17- FlightMax EX5000

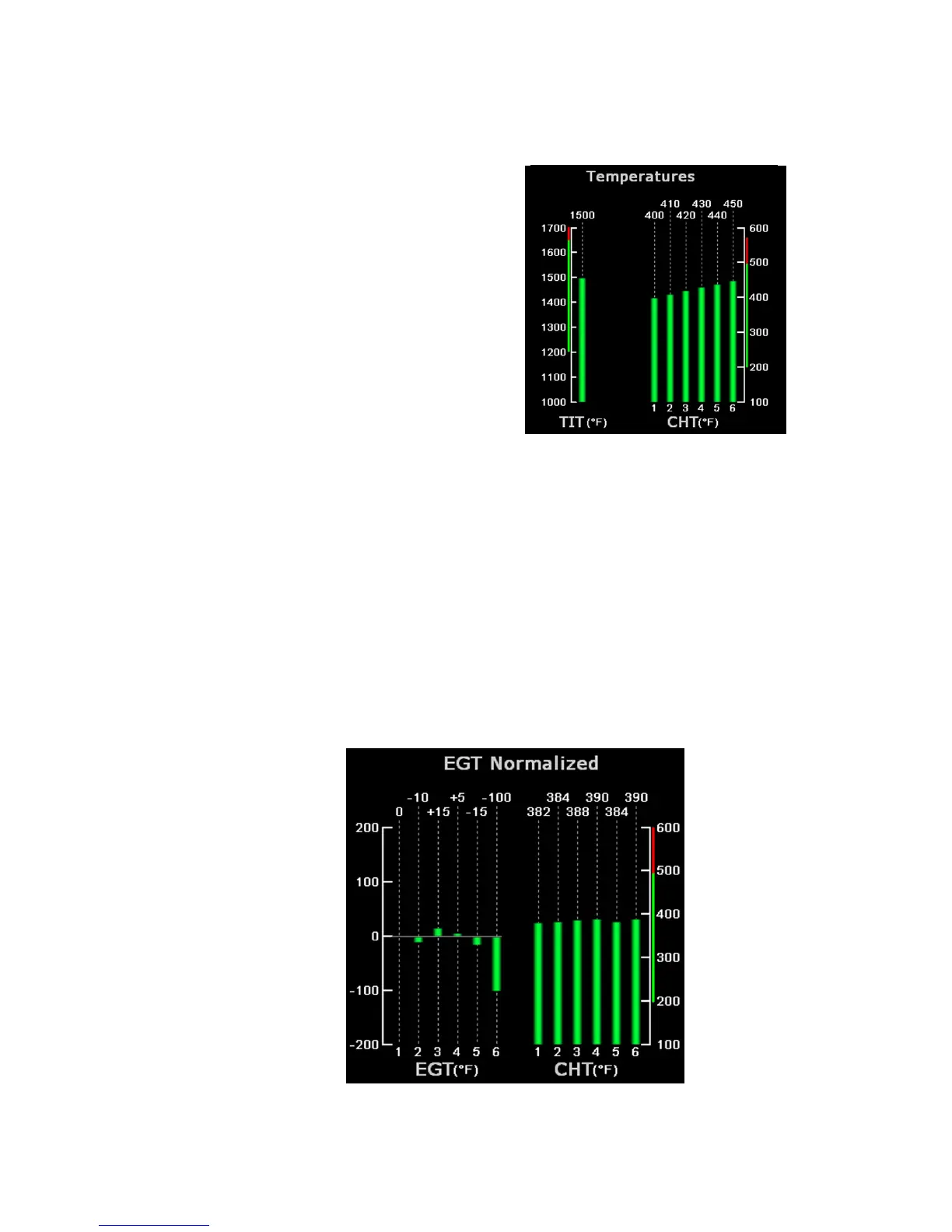

5) Engine Page - Cylinder Temperatures
Turbine Inlet Temperature - Indicates the
Turbine Inlet Temperature in degrees
Fahrenheit for Saratoga II-TC and Piper 6XT
Aircraft. The numericTIT indication is above
the bar along with an up/down trend arrow.
Exhaust Gas Temperature (EGT) -Indicates
the exhaust gas temperature of each cylinder
in degrees Fahrenheit as a bar graph. The
individual EGT of each
cylinder is also displayed as a numeric indi-
cation above each bar. An up or down trend
arrow will also appear below this numeric
indication to indicate whether a cylinder's
EGT is rising or falling.
Cylinder Head Temperature (CHT) -
Indicates the temperature in degrees
Fahrenheit of each engine cylinder head as reported by the DAU. The individual
temperature of each cylinder is also displayed as a numeric indication above each
bar. A white up or down trend arrow will also appear above or below this numeric
indication to indicate whether a cylinder is rising or falling in temperature.
Absolute - Selects the “absolute” mode for EGT/TIT display. Absolute mode is the
default display mode, which indicates the current exhaust gas temperature for each
cylinder.
Normalize - Selects the “normalize” mode for the EGT/TIT display. Upon activation,
the display will establish all of the current EGT’s or TIT at a zero point.
In Normalized mode, the bar graphs will indicate overall changes in temperature rather
than displaying the actual temperature values as in absolute mode.
Engine Instruments - Temperatures
