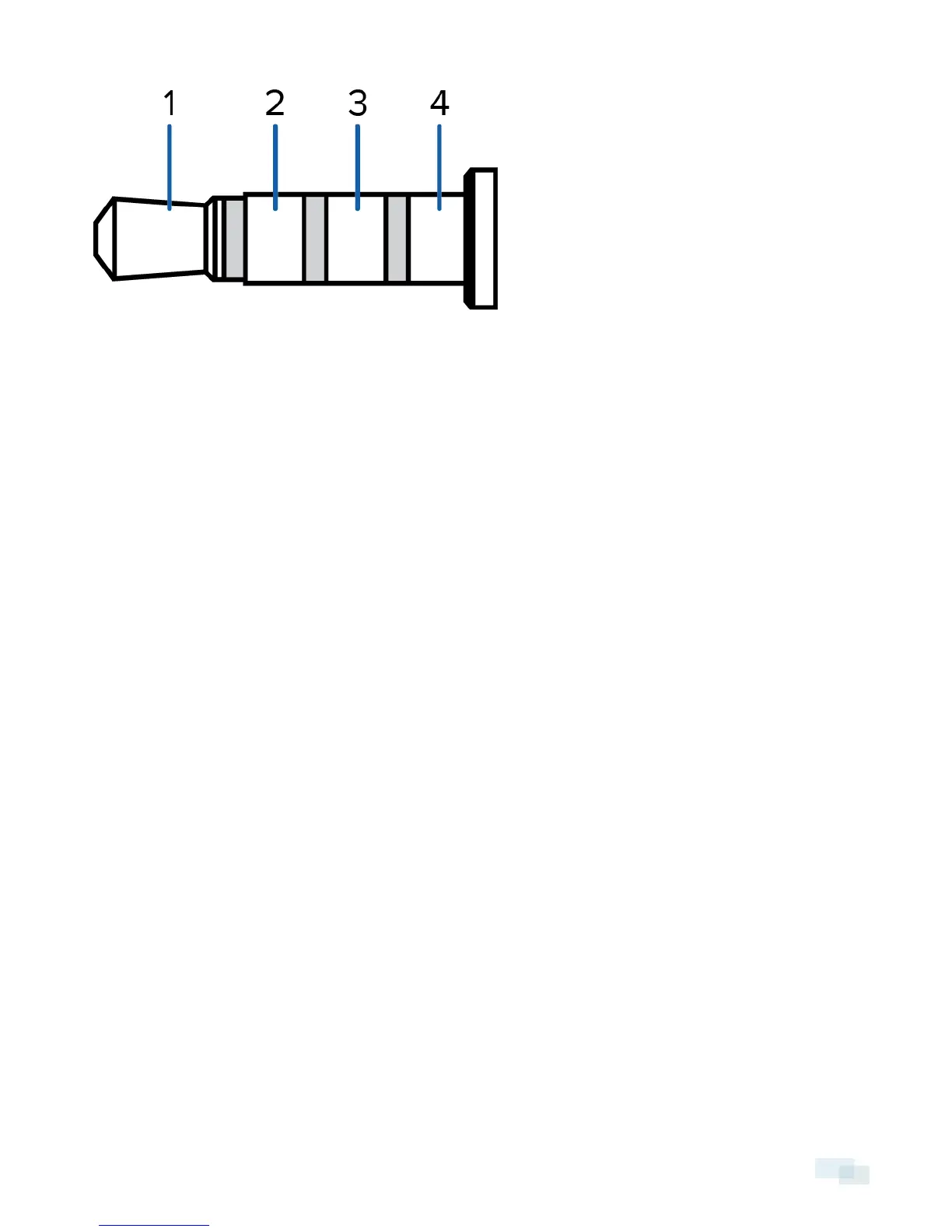

Figure 1: Mini-jack A/V connector

1. Audio IN

2. Composite Video OUT

3. GND

4. Audio OUT

Connecting to Microphones, Speakers and Video Monitors 10
