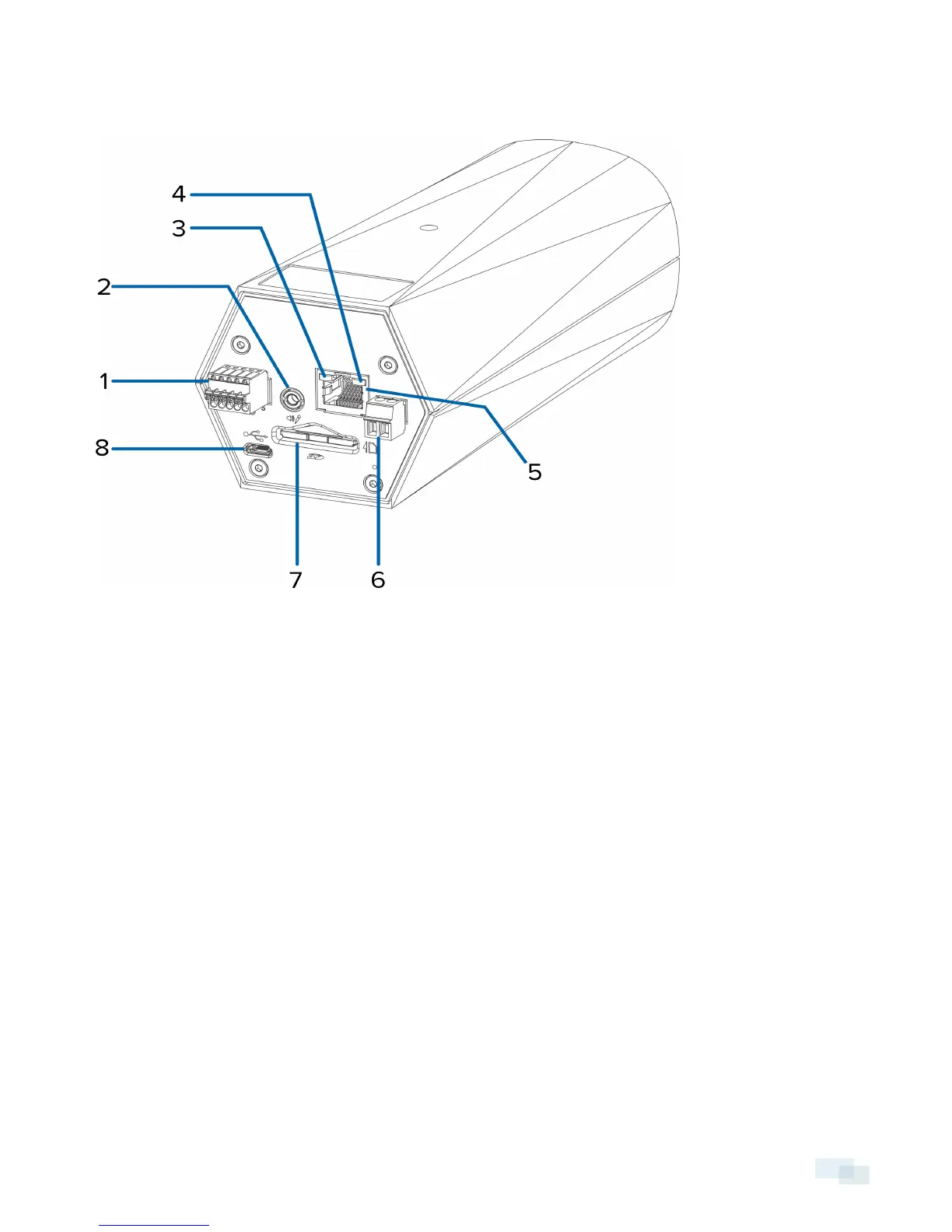

Rear View
1. I/O Connector Block
Provides connections to external input/output devices.
2. Audio/Video Connector
Accepts a mini-jack connector (3.5 mm).
3. Connection Status LED
Provides information about camera operation. For more information, see LED Indicators on page 11
4. Link LED
Indicates if there is an active connection in the Ethernet port.
5. Ethernet Port
Accepts an Ethernet connection to a network. Server communication and image data transmission occurs
over this connection. Also receives power when it is connected to a network that provides Power over
Ethernet.
6. Power Connector Block
Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only
required when Power over Ethernet is not available.
7. SD Card Slot
Rear View 2
