14
English
Connecting to External Devices
External devices are connected to the camera through the I/O terminal.
The pinout for the I/O terminal is shown in the following table and
diagram.

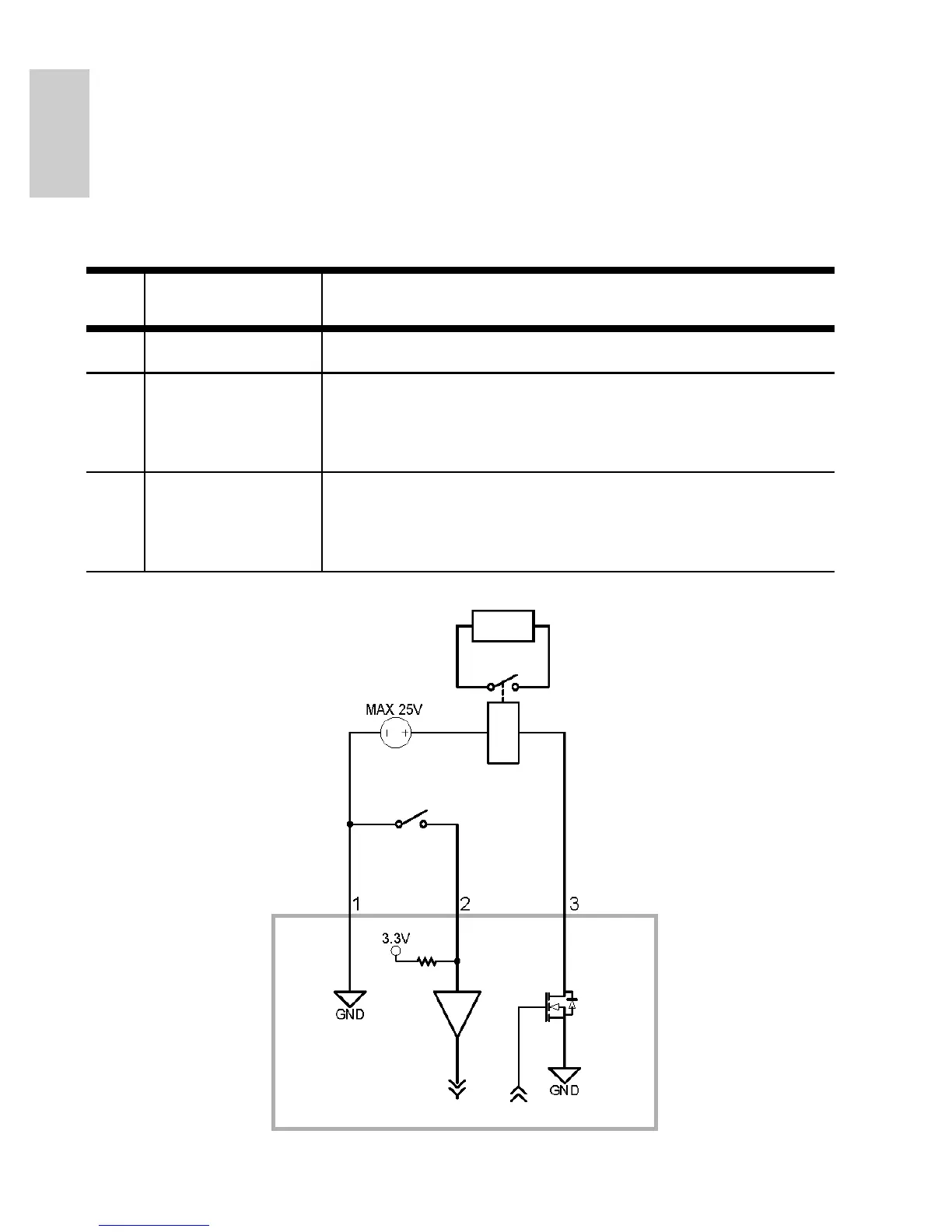

Figure: External I/O terminal schematics and example application.
Table: External I/O Terminals
Pin Function Description
1 Ground Ground
2 Input To activate, connect the Input to the Ground pin.
To deactivate, leave disconnected or apply
between 3-15 V.
3 Output When active, Output is internally connected
with the Ground pin. Circuit is open when
inactive. Maximum load is 25 VDC, 120 mA.
Switch
Relay
