15
English
Connecting to Microphones, Speakers and
Video Monitors
The camera can be connected to an external microphone, speaker and
video monitor through the audio/video connector. The connector is a
mini-jack (3.5 mm), and the pinout for it is shown in the following
diagram.
NOTE: The camera only supports line level mono audio input and an
NTSC or PAL video output.
The video output signal is determined by the camera flicker control
setting. When the camera flicker control is set to 60 Hz, the video
output signal is NTSC. When the flicker control is set to 50 Hz, the
video output signal is PAL. Use the Avigilon Camera Installation Tool to
configure the camera’s flicker control in the Image and Display setup.

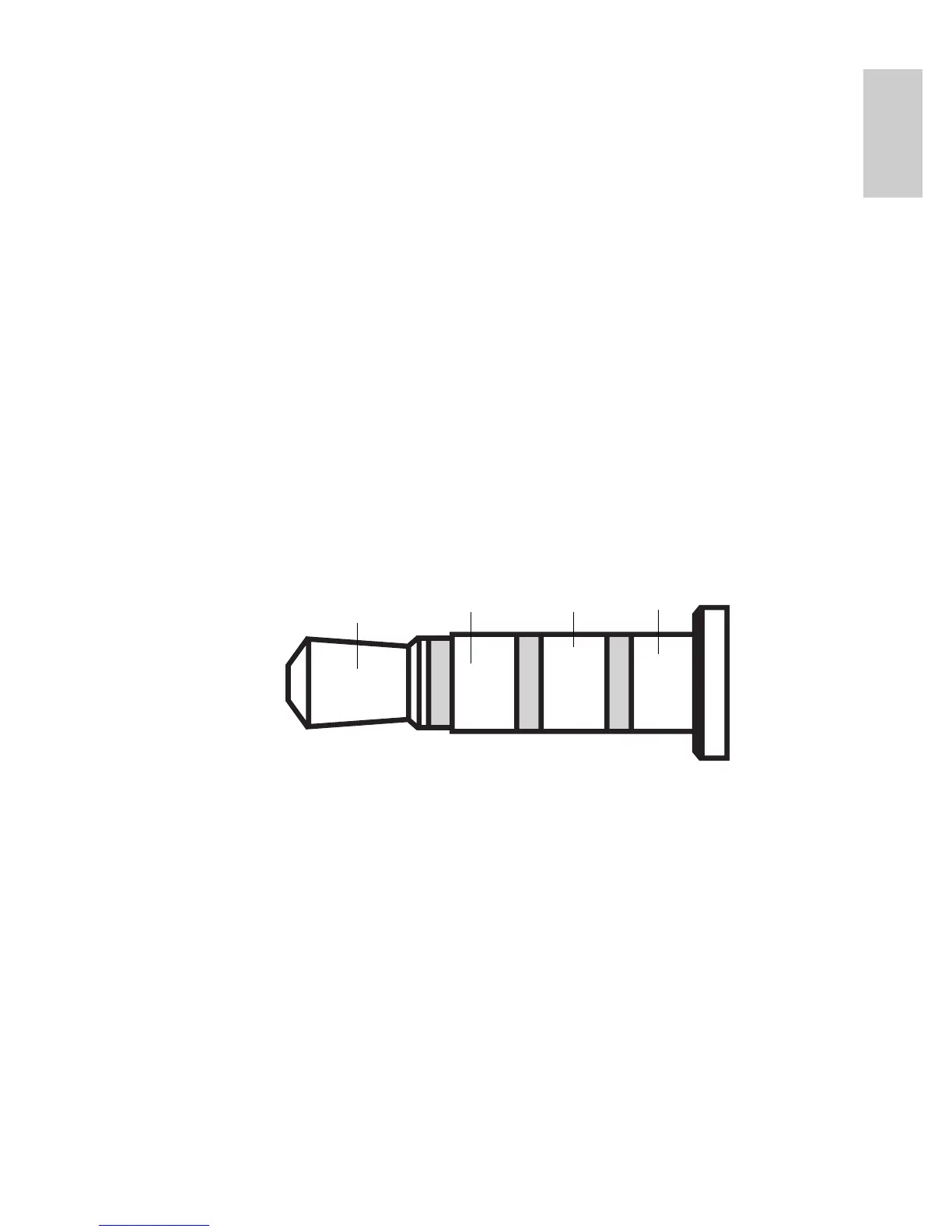

Figure: Mini-jack audio video connector.
Audio IN
Composite
Video OUT
GND
Audio
OUT
