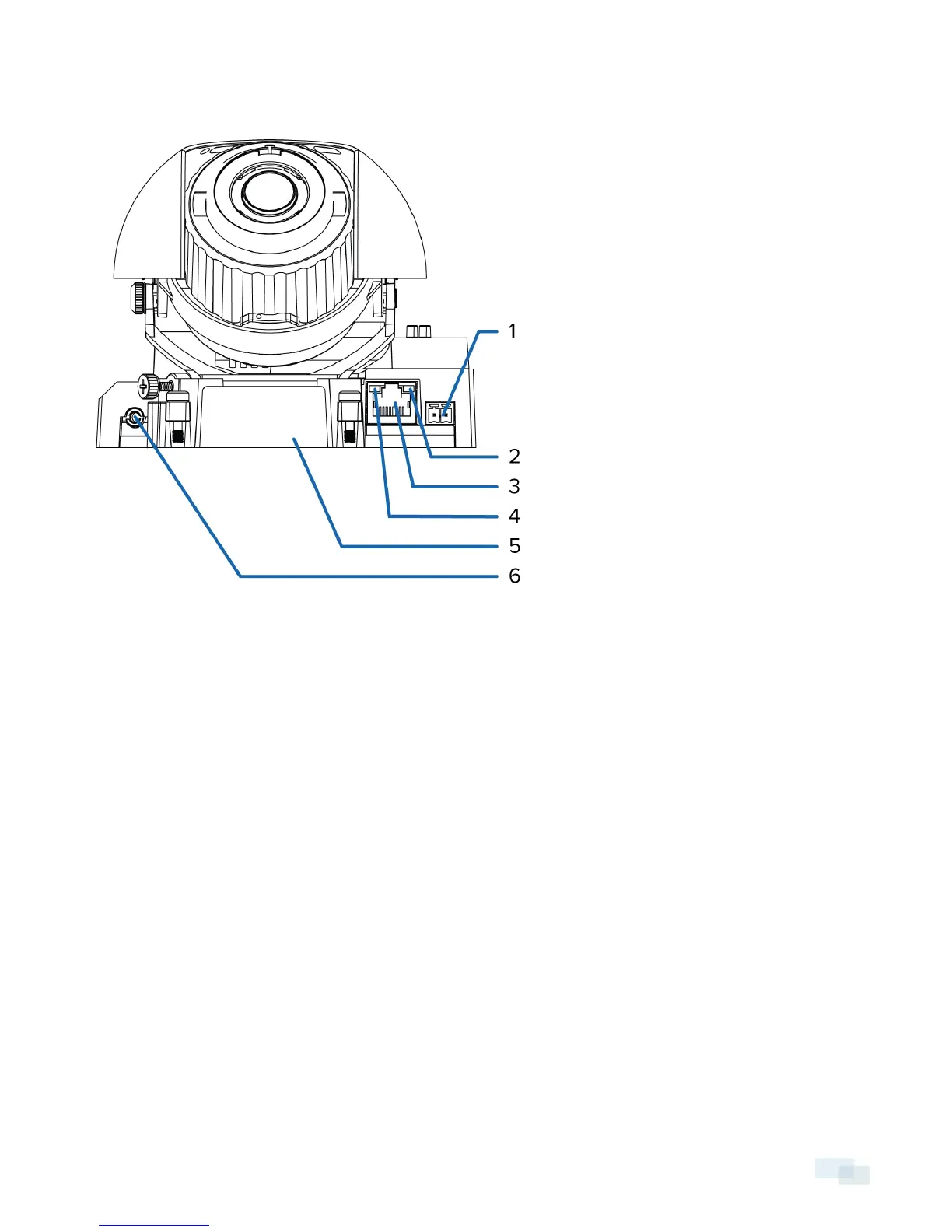

Front View
1. Power connector block
Accepts a terminal block with either an AC or DC power connection. DC input can be either polarity. Only
required when Power over Ethernet is not available.
2. Link LED
Indicates if there is an active connection in the Ethernet port.
3. Ethernet port
Accepts an Ethernet connection to a network. Server communication and image data transmission occurs
over this connection. Also receives power when it is connected to a network that provides Power over
Ethernet.
4. Connection status LED
Provides information about camera operation. For more information, see LED Indicators on page19.
5. Serial number tag
Device information, product serial number and part number label.
6. Audio/video connector
Accepts a mini-jack connector (3.5 mm).
Front View 5
