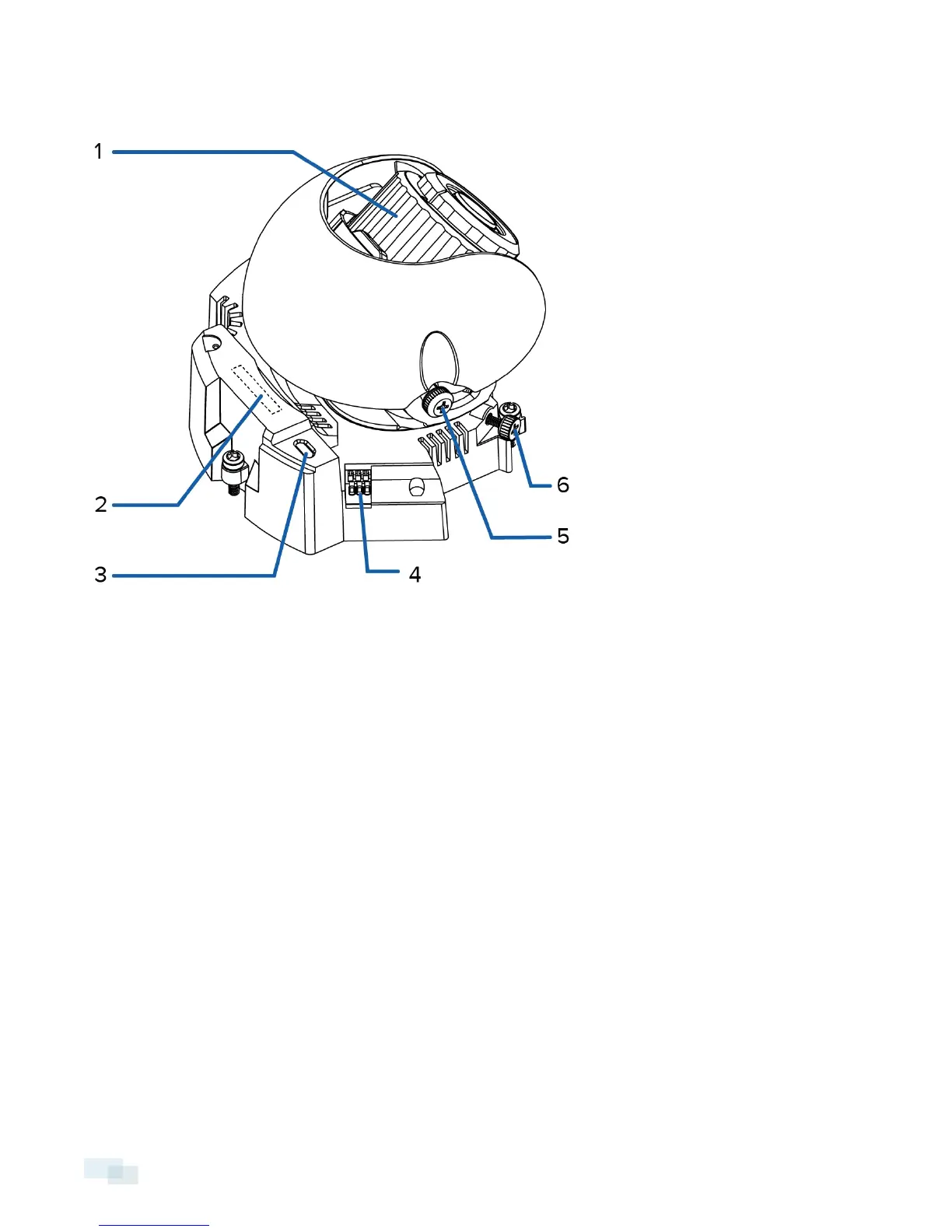

Rear View
1. Azimuth control
Provides control of the image angle.
2. SD card slot
Accepts an SD card for onboard storage.
3. Micro USB port
Accepts a micro USB to USB adapter. Only required when using the Avigilon USB Wifi Adapter.
4. I/O connector block
Provides connections to external input/output devices.
5. Tilt lock thumb screws
Provides a locking mechanism for the image tilt adjustment.
6. Pan lock thumb screw
Provides a locking mechanism for the image pan adjustment
6 Rear View
