H1/11

WHITE (+/-) SELECTABLE LIGHT FLASH OUTPUT

This wire is connected to the (+) parking light wire in the vehicle. If the light ﬂash

polarity jumper under the sliding door is moved to the opposite position (See

Internal Programming Jumper section of this guide) this wire supplies a (-) 200

mA output.

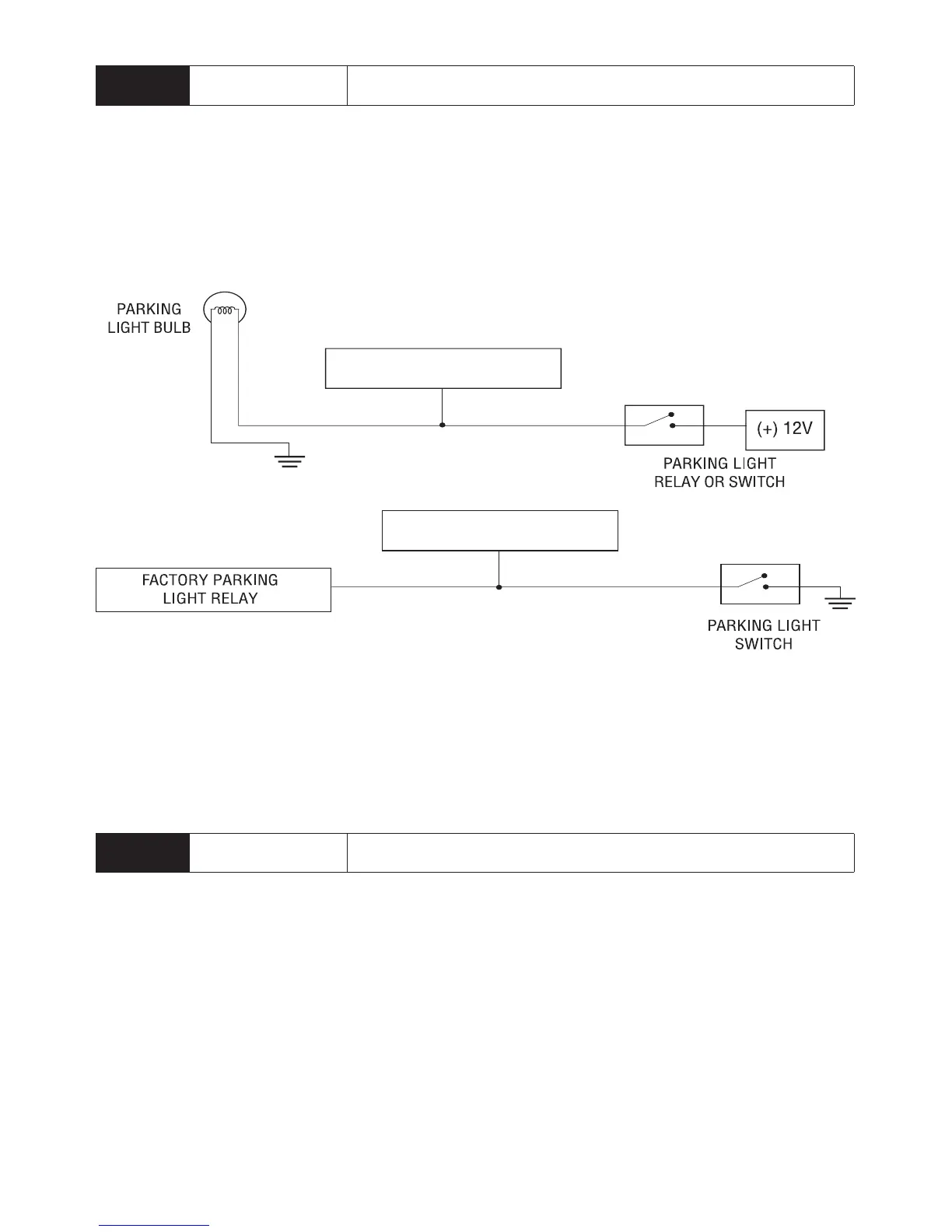

(+) Positive Light Flash Output

(-) Negative Light Flash Output

WHITE H1/11

(+) LIGHT FLASH OUTPUT

WHITE H1/11

(-) LIGHT FLASH OUTPUT

Note: For parking light circuits that draw 10-amps or more, the internal jumper

must be switched to a (-) light ﬂash output. (See Setting the light ﬂash polarity

section of this guide.) P/N 8617 or a standard automotive SPDT relay must be

used on the H1/11 light ﬂash output harness wire.

H1/12

ORANGE (-) 500mA GROUND WHEN ARMED OUTPUT

This wire supplies a (-)500 mA ground as long as the system is armed. The out-

put ceases as soon as the system is disarmed. The orange wire may be wired

to an optional Directed Electronics 8618 starter kill relay.
