H1/9
BLACK/WHITE (-) 200mA DOME LIGHT OUTPUT SUPERVISION OUTPUT

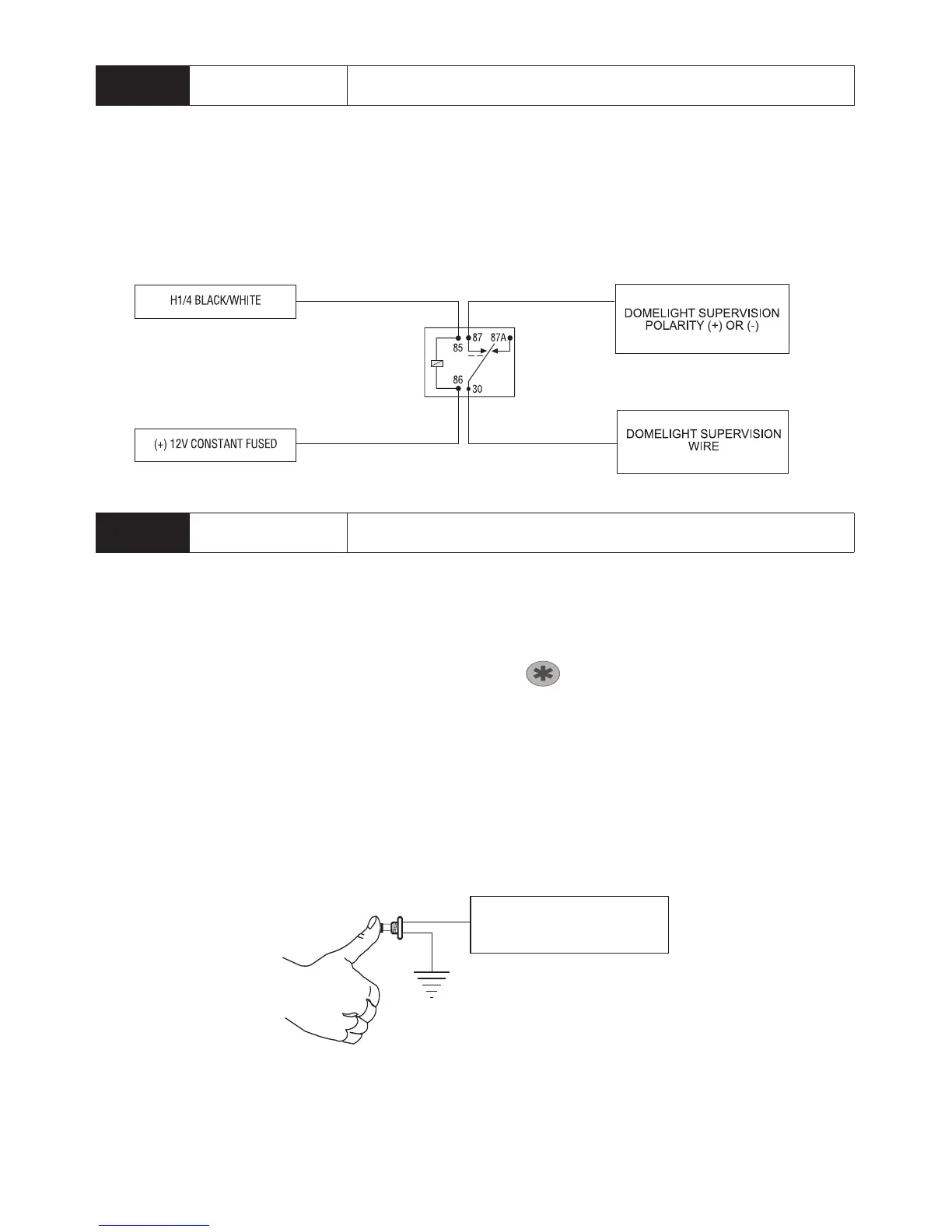

Connect this wire to the optional dome light supervision relay as shown below:
Important! This output is only intended to drive a relay. It cannot be connected
directly to the dome light circuit, as the output cannot support the current draw
of one or more light bulbs.
H1/10
WHITE/BLUE REMOTE START (-) ACTIVATION INPUT
This input comes from the factory set to 1 activation pulse. This means that it is
necessary to have a two consecutive on ground pulse on the white/blue wire for
the remote start to activate or to deactivate. The same holds true for the remote
control activation it is necessary to press the button once for the remote start
to activate or deactivate.
Note
:
The number of activation inputs can be programmed to 1 or 2 pulses with
an optional momentary switch. This setting affects both the input wire and the
remote control when operating the remote starter.
