H1/7
BLUE (-) MULTIPLEX INPUT, ZONE 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while in-
puts longer than 0.8 seconds will trigger the full alarm sequence. If installing an
optional Directed Electronics dual stage sensor, connect both the blue and the
green wires of the optional sensor to this input. This wire will report Zone 4.
H1/8
GREEN (-) DOOR TRIGGER INPUT, ZONE 3

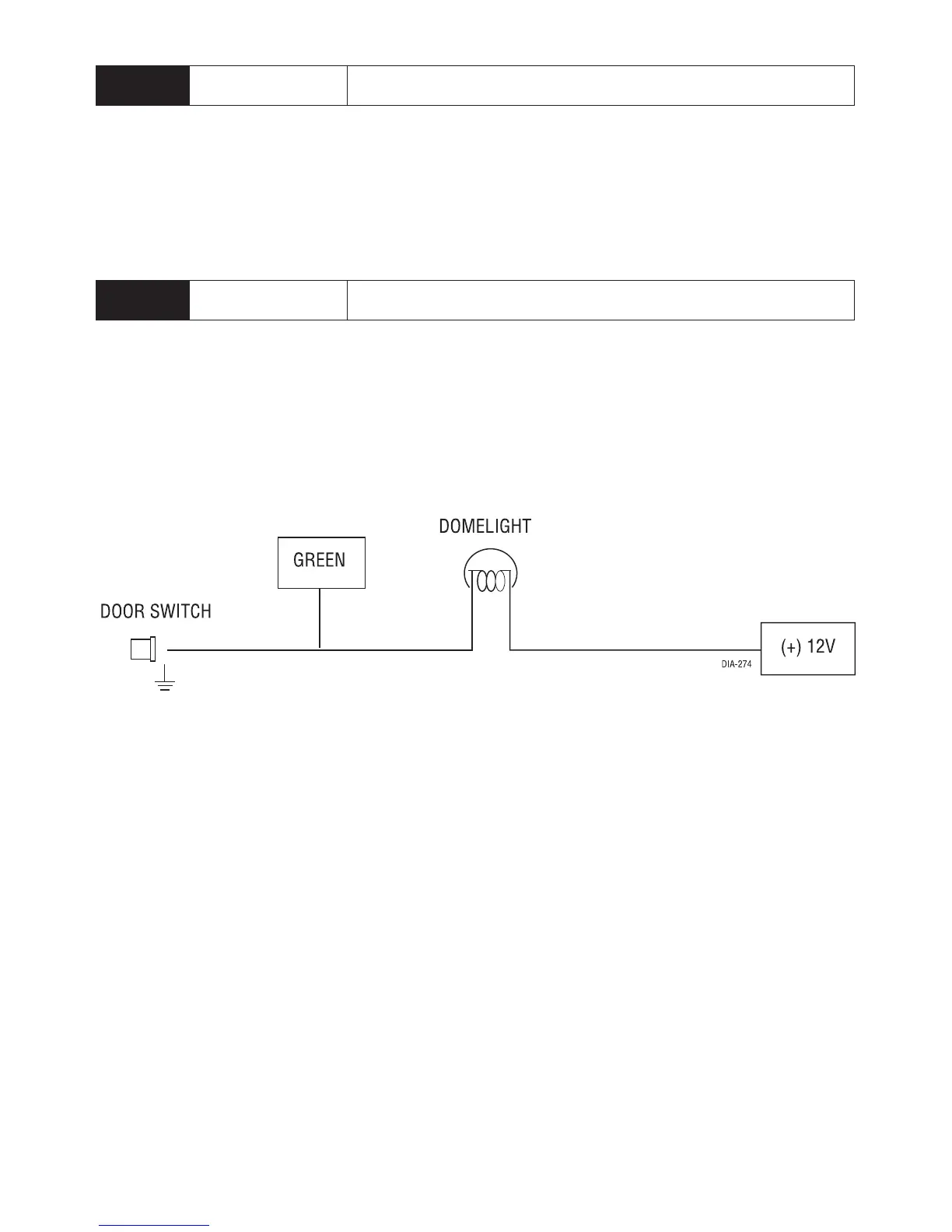

Most vehicles use negative door trigger circuits. Connect the green wire to a
wire which shows ground when any door is opened. In vehicles with factory
delays on the dome light circuit, there is usually a wire that is unaffected by the
delay circuitry. This wire reports Zone 3.
