AVL DITEST COUNTER User Manual

Commissioning
AVL DiTEST Counter
User manual
14
v
Exhaust Gas Probe, Hose
v
WARNING
Risk of burns from hot parts
The heating hose connection heats up to over 55 °C. Wear safety gloves when handling the
hose.
1. Connect the heating hose to the "GAS IN" connection (1).
2. Connect the heating cable to the "HEATING" connection (3).
3. Connect the exhaust gas probe with the connecting hose to the "GAS IN"
connection (1).
4. Make sure that the exhaust gas can flow out unhindered at "GAS OUT" (2).

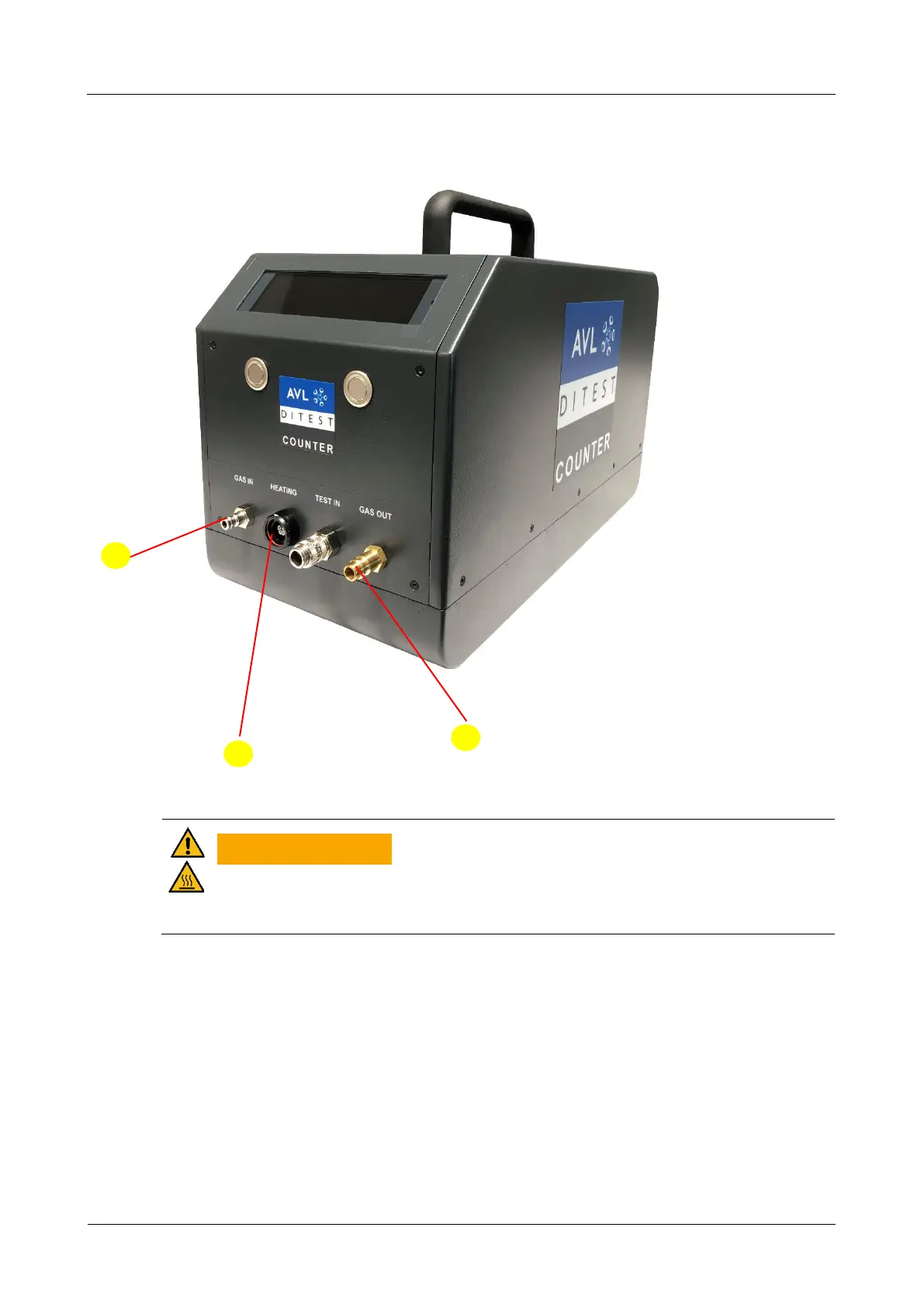

Fig. 6: Connecting the AVL DiTEST Counter on the front side
1
2
3
