Working with the AVL DiTEST Counter
AVL DiTEST Counter
User manual
20

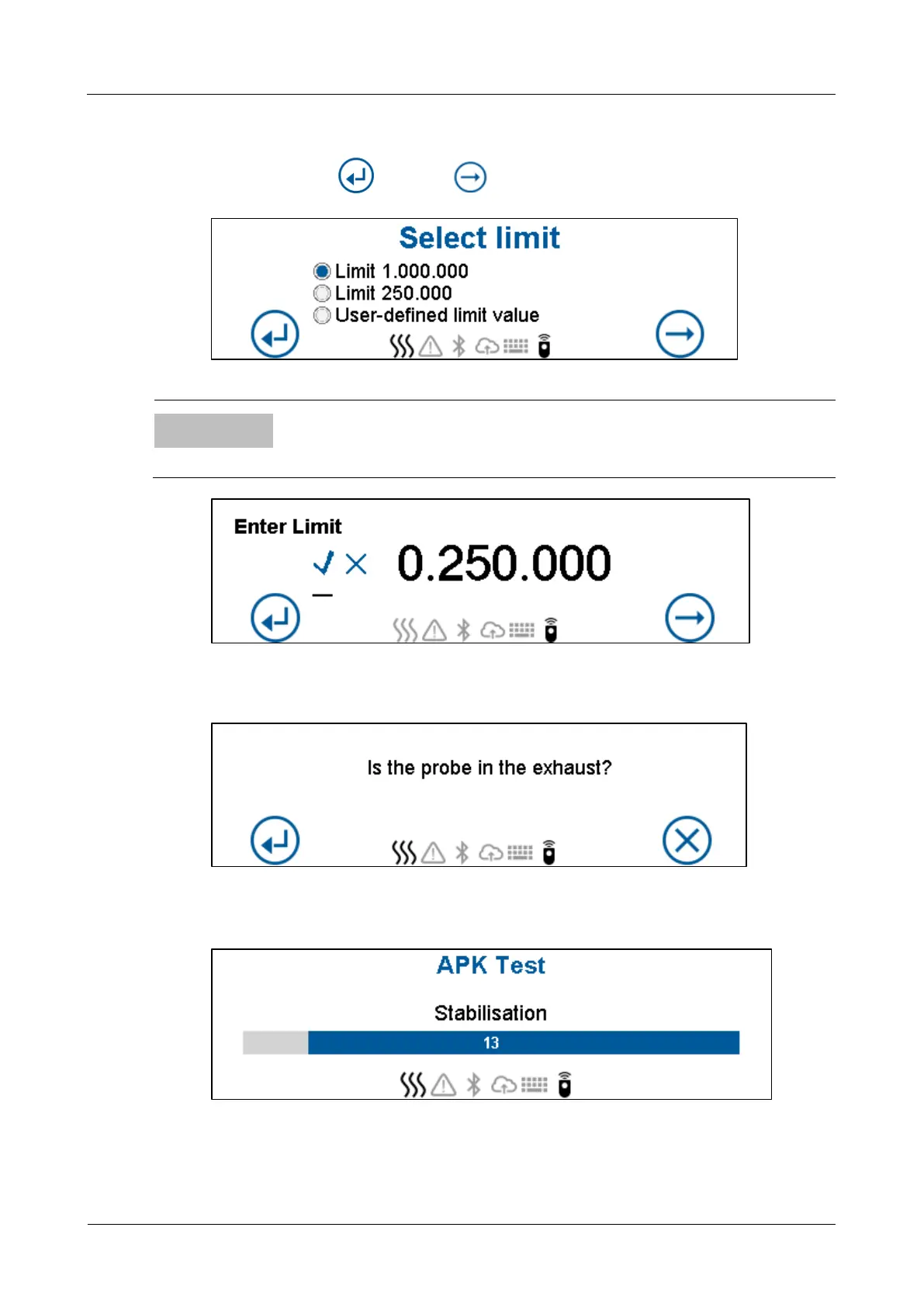

5. Select a limit for the vehicle by either selecting one from the list or by entering it
manually. Press and then .
Fig. 14
Information
In device settings, elements can be shown and hidden.
Fig. 15
6. Install the probe on the exhaust.
Fig. 16
After a stabilization period of 15 seconds, the device starts measuring.
Fig. 17
During the measurement, 15 single values are averaged to a final result. The bar shows
the single values still required.
