MCS 120, side view right

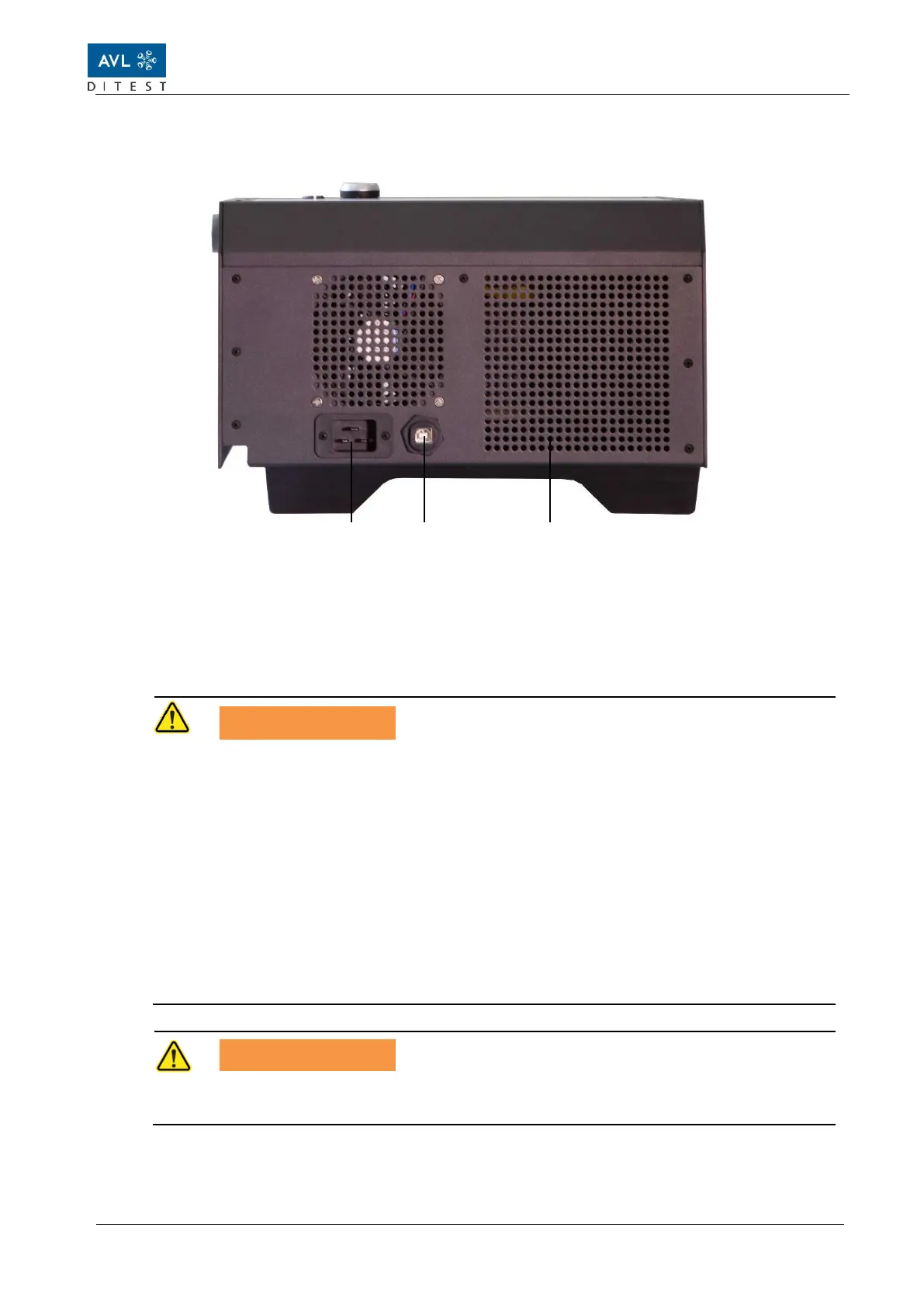

Fig. 2-7 MCS 120, side view right
(1) Air inlet grill
(2) USB-connector (rugged) for connection of the USB cable
(3) Power supply inlet. Connection for power cord
Use the included mains cord set (power cord)!
If the mains cord set has to be changed note the following requirements strictly!
On 240 V mains grid the mains cord set must be designed for a continuous
current of 10 A, on 120V mains grid the mains cord set must be designed for a
continuous current of 20 A.
The mains cord set must have a C19 plug for the connection to the MCS suitable
for the above current ratings.
Connect MCS 120 only to protective contact sockets!
Set up the MCS 120 in a way that there is always free access to the power
separator! (Power cord from the mains socket).
Version USA: Only oil-resistant cables may be used!
Set up the MCS 120 so that adequate ventilation is guaranteed, fans and air
vents are not obstructed and the air must circulate freely!
