5. OPERATION INSTRUCTION
5.1. Multiview Output Layout

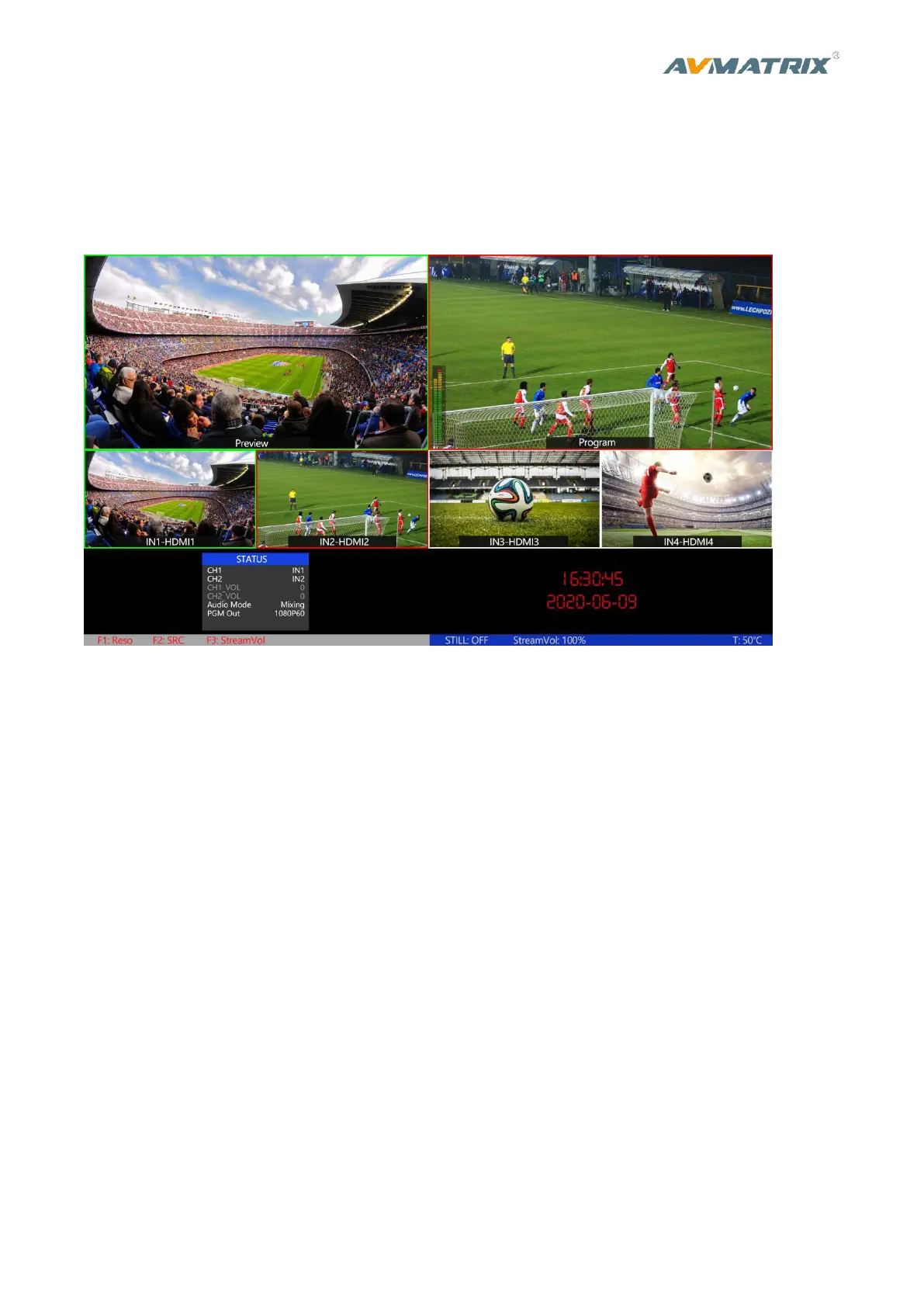

The Multiview includes PGM (Program), PVW (Preview), 4 HDMI signal sources, menu, clock, and status
display of Function key, Still, UVC, and working temperature.
6. USB CAPTURE
The switcher's USB output is based on UVC (USB video class) and UAC (USB audio class) standard. No
additional drivers must be installed. After installation in operating system, the relevant video and audio
devices will be added. In the Windows Device Manager, for example, it will appear two new devices:
• Under Camera: Switcher USB Video
• Under Audio inputs and outputs: Switcher USB audio
Use a third-party Video Media Player software like OBS, PotPlayer, VLC, Windows Media Player to play
and store the captured video content.
7. MENU SETTING
7.1. PGM and Multiview Output Format
PGM output format can be set from menu or F1 button (refer to part 4). There are 1080P
50/60/30/25/24Hz, 1080I 50/60Hz selectable for PGM outputs. The Multiview output is follow PGM at
1080P 50/60Hz format.
