AVMATRIX HVS0401 User Manual

3
2. INTERFACES

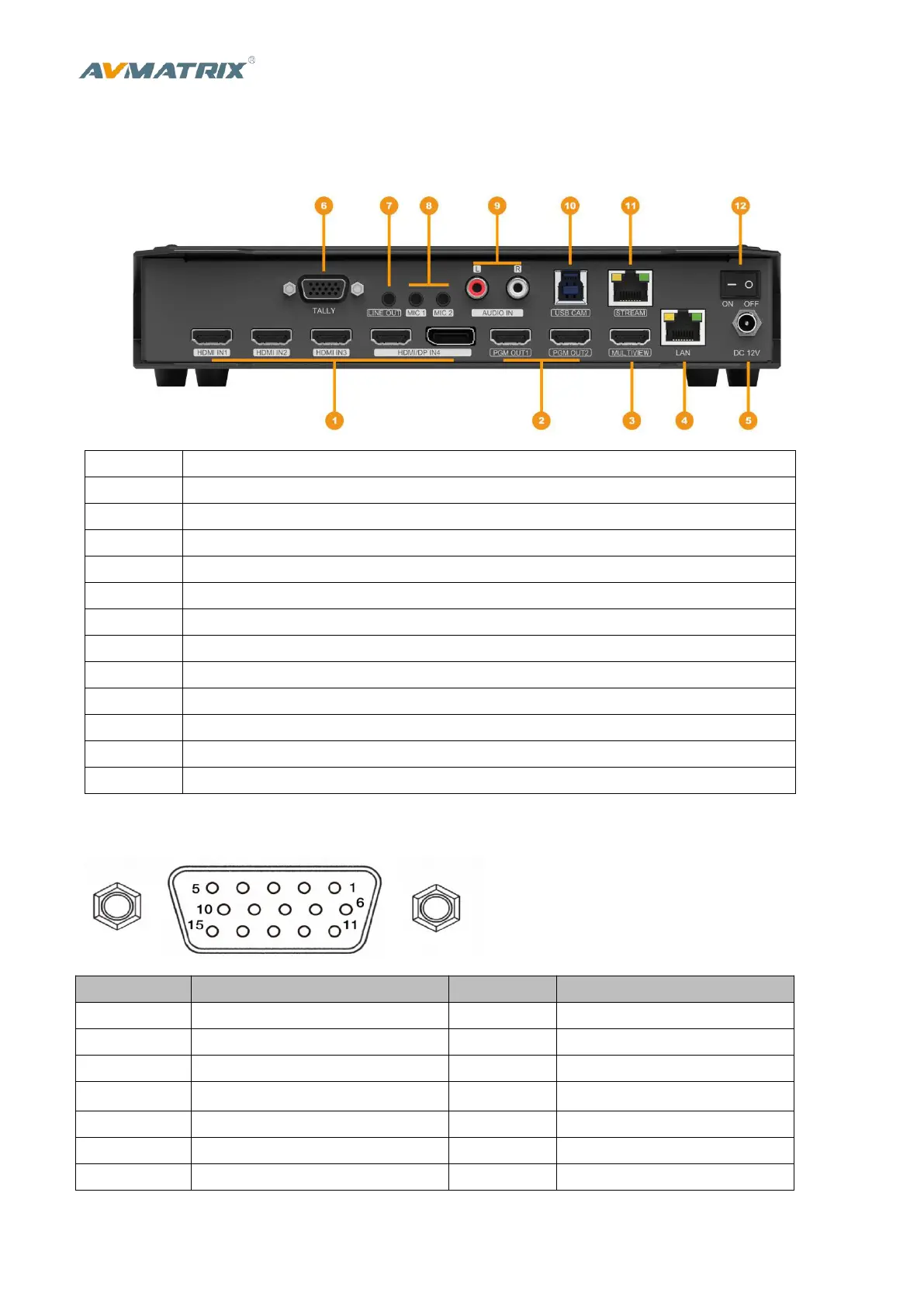

2.1. Rear Interfaces
1
HDMI/DP IN
2
HDMI PGM OUT
3
HDMI MULTIVIEW OUT
4
RJ45 FOR UPDATE
5
DC 12V
6
GPIO (for tally)
7
ANALOG AUDIO OUT (3.5mm, LINE OUT)
8
ANALOG AUDIO IN (3.5mm, LINE IN)
9
ANALOG AUDIO (RCA L/R) IN
10
USB TYPE-B, FOR WEB CAM
11
RJ45 RESERVED FOR UPDATESTREAM
12
DC 12V
13
POWER SWITCH
2.2. Tally PIN Definition
PIN
Definition
PIN
Definition
11
PGM-IN1
6
PVW-IN1
12
PGM-IN2
7
PVW-IN2
13
PGM-IN3
8
PVW-IN3
14
PGM-IN4
9
PVW-IN4
15
PGM-IN5
10
PVW-IN5
3
PGM-IN6
4
PVW-IN6
5
GND

AVMATRIX HVS0401 Specifications

General

Brand	AVMATRIX
Model	HVS0401
Category	Switch
Language	English
