AVMATRIX HVS0401 User Manual

2
1. BRIEF INTRODUCTION
1.1. Overview

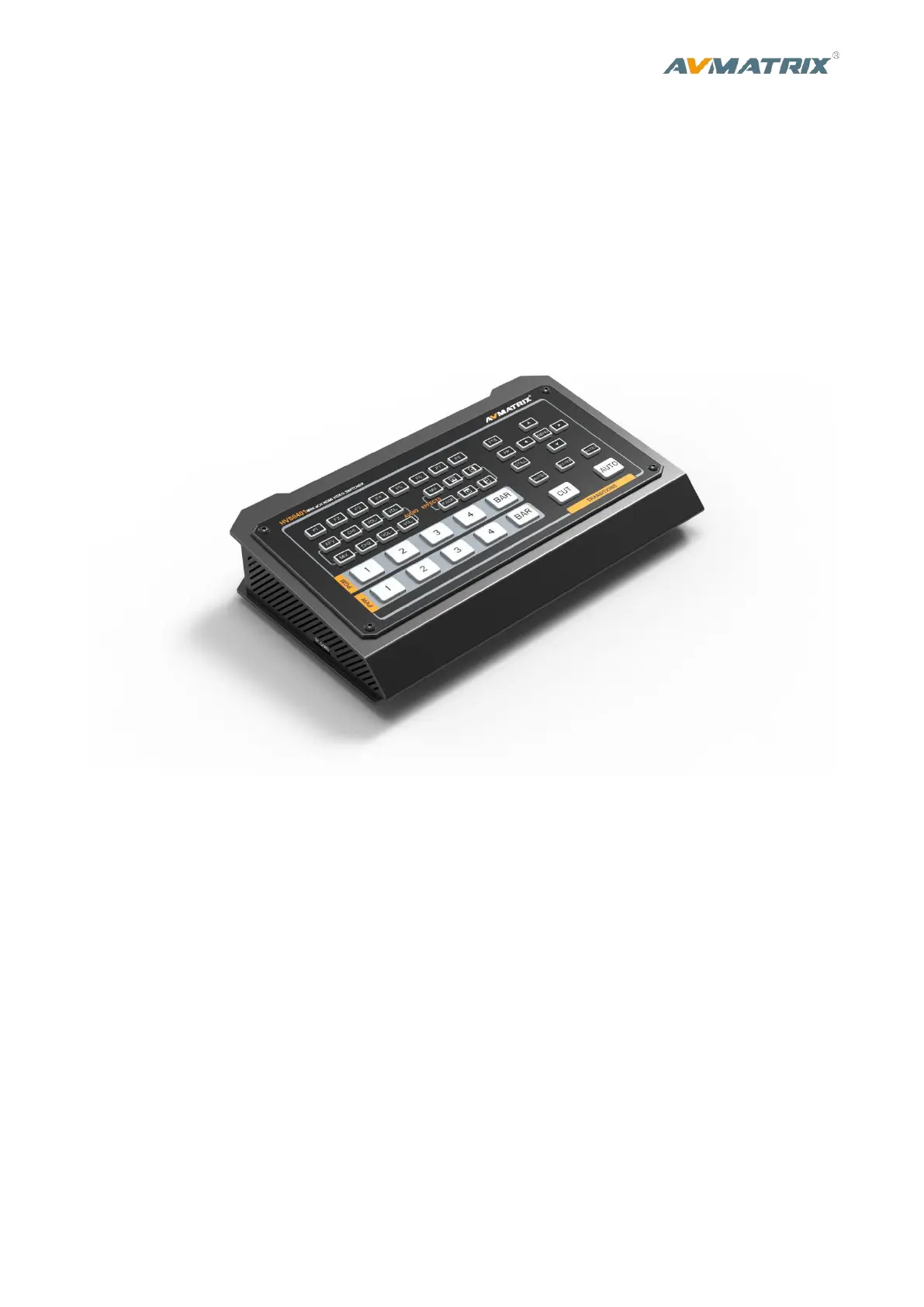

HVS0401 is a micro-designed metal case with a 4-channel HDMI/DP multi-format video Switcher that
allows video switching, audio mixing, and different conversion effects. Input signal automatic detection,
PGM output can be scaled, compatible with a variety of equipment, more flexible. USB output can be
directly connected to a computer. The cost-effective switcher will be your perfect choice for live streaming
applications.
1.2. Main Features
 4 channel inputs: 4×HDMI,1×DP (for optional).
 Outputs:2×HDMI PGM,1×HDMI multiview.
 USB3.0 to connect PC to realize live streaming.
 Auto/Cut transitions and Mix/Fade effects.

PiP function, both size and position is adjustable.
 Audio mixer: 3.5mm stereo/RCA Audio& HDMI.

GPIO interface for live tally system embedded audio.
 FTB for emergency.

AVMATRIX HVS0401 Specifications

General

Brand	AVMATRIX
Model	HVS0401
Category	Switch
Language	English
