3 Mechanical
3.1 Dimensions:

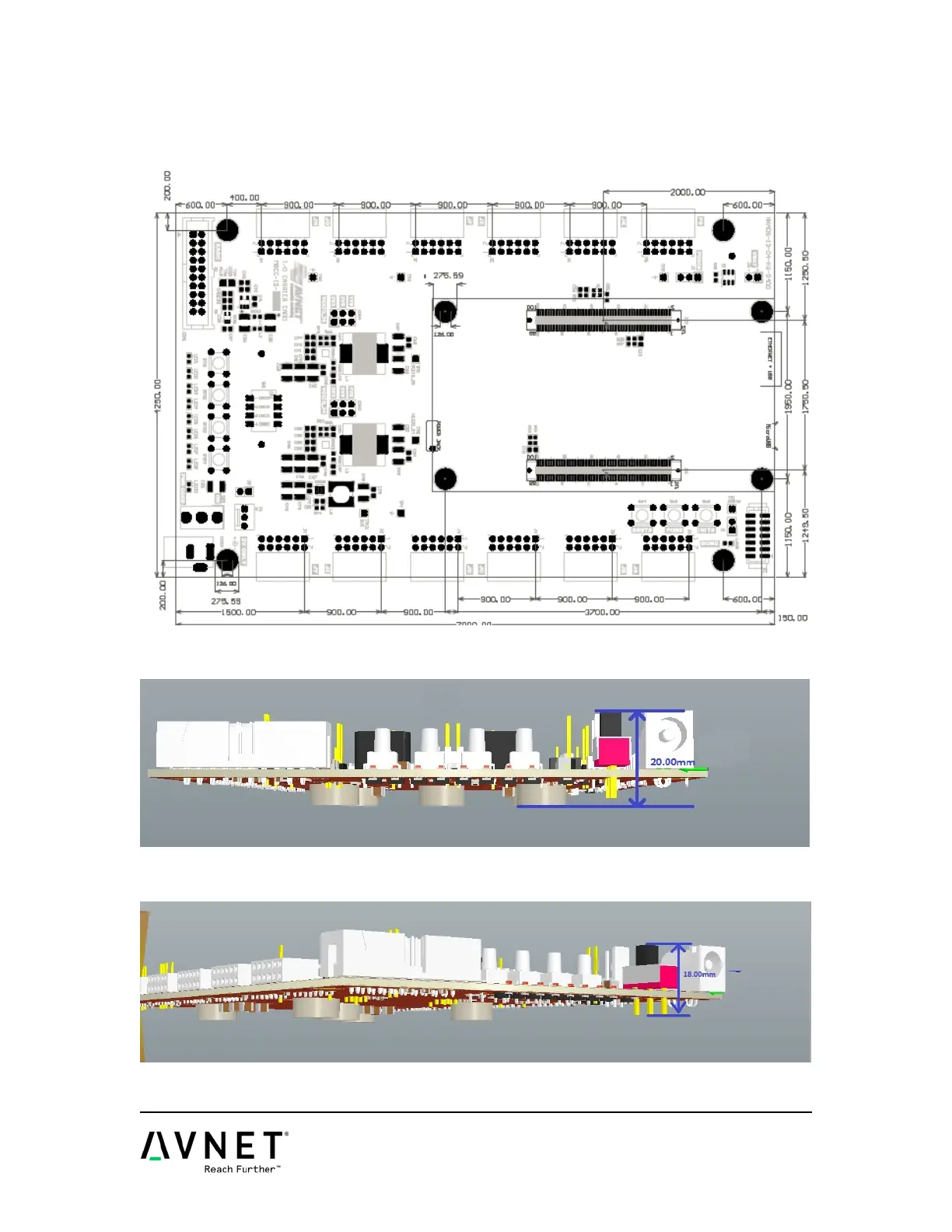

Figure 10: IOCC Horizontal Mechanical Dimensions (mils)
Figure 11 - Total height from Bumper to Switch top – 20.00 mm
Figure 12 - Switch Height - no bumpers – 18.00 mm
