Avnet MicroZed - Zynq Bank Pin Assignments

30-Oct-2020, Rev. 1.1
5
1.1 Zynq Bank Pin Assignments
The following figure shows the Zynq bank pin assignments on the MicroZed followed
by a table that shows the detailed I/O connections. See tables Table 12 – JX1
Connections and Table 13 – JX2 Connections.

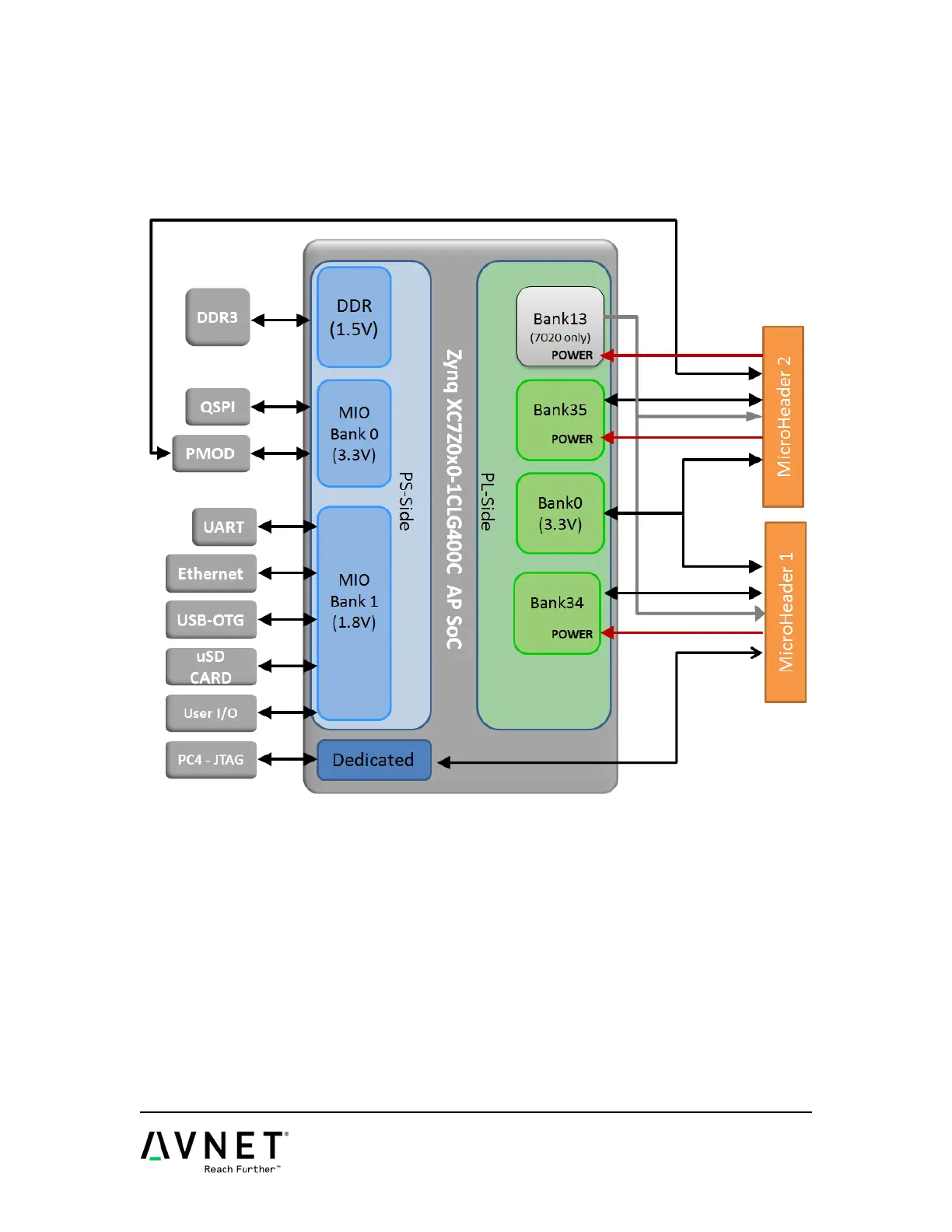

Figure 3 – Zynq CLG400 Bank Assignments
