AVOCOR F Series Quick Start Guide

v.30_05_2018 13

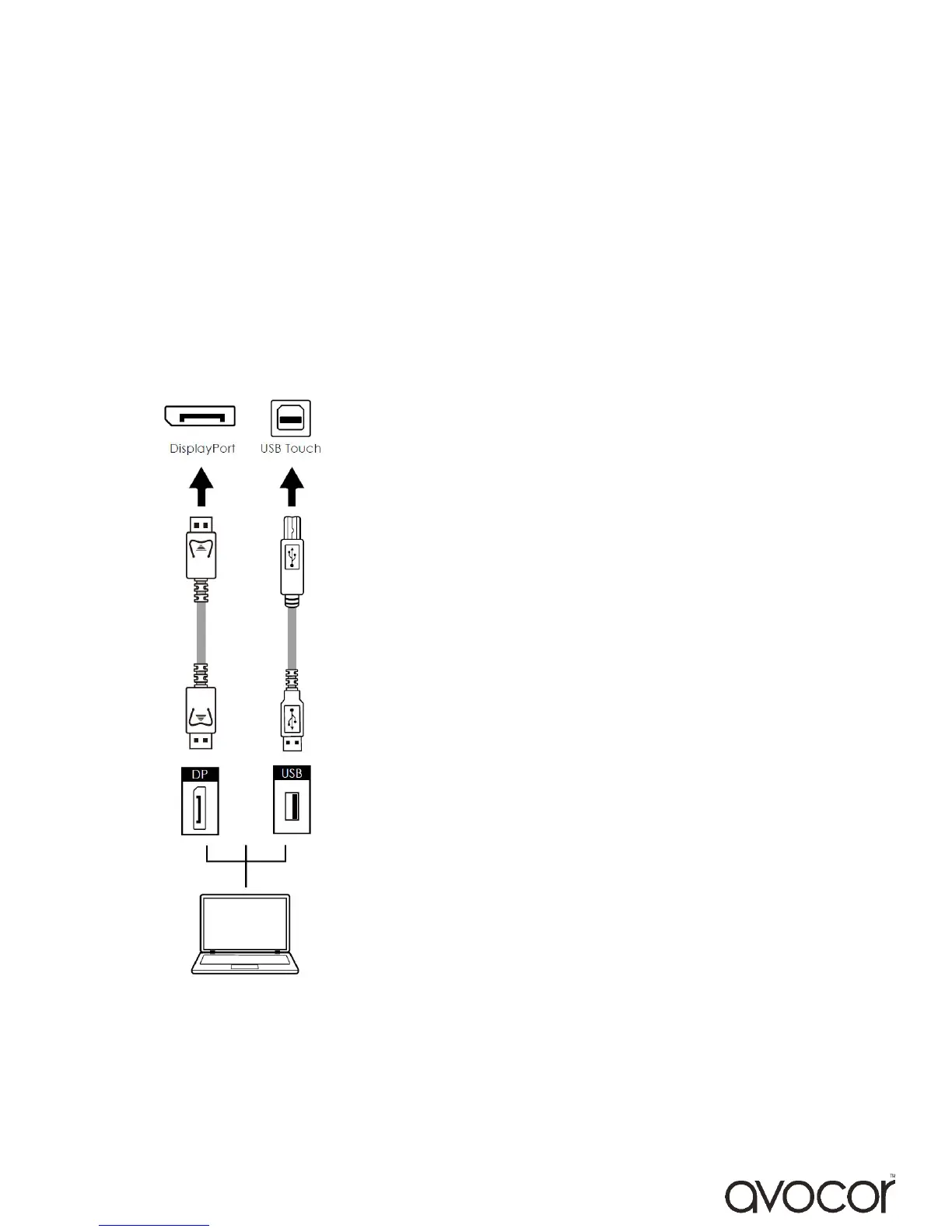

Connecting to an external PC using a
DisplayPort connection
In addition to a DisplayPort connection, a USB touch connection is required when
connecting an external PC.
1. Connect a DisplayPort cable to the DisplayPort port of the touchscreen and to the
external PC.
2. Connect the enclosed USB cable to the touch USB port (USB-B) of the touchscreen and
to the USB port (USB-A) on the external PC.
3. Using the Remote Control select the DisplayPort source button or press the Source
Button (see operating buttons) on the Front Connection bar to select DisplayPort.
In order for Plug and Play to work correctly, you must turn on the
display before you turn on the connected computer.
We recommend using a USB cable that is no longer than 5
metres.

AVOCOR F Series Specifications

General

Brand	AVOCOR
Model	F Series
Category	Monitor
Language	English
