AVOCOR F Series Quick Start Guide

v.30_05_2018 15
Installing an OPS Module
Follow the steps below to install an OPS module.
Step 1. Ensure that the display is turned off
Step 2. Use a screw driver to unscrew the OPS slot shield on the display input panel. Do not
lose the screws that are removed.
Step 3. Install the OPS module by sliding it into the OPS slot until you hear a click, indicating
the module is securely inserted. When using an Avocor OPS PC, the fan should be visible
Step 4. Secure the OPS module in position by screwing it onto the display input panel using
the screws that were removed earlier.
Step 5. Ensure the installation is complete before turning on the power.
Step 6. Turn on the display. When using an Avocor OPS Pc you should see a green light on
the side of the OPS, this will indicate that the OPS PC is switched on and operational.
Note. When installing or de-installing an OPS PC, the display must be switched off. If the display is on when
performing the installation or deinstallation of the OPS PC, this could cause damage to either the display or OPS PC
invalidating the warranty for both.

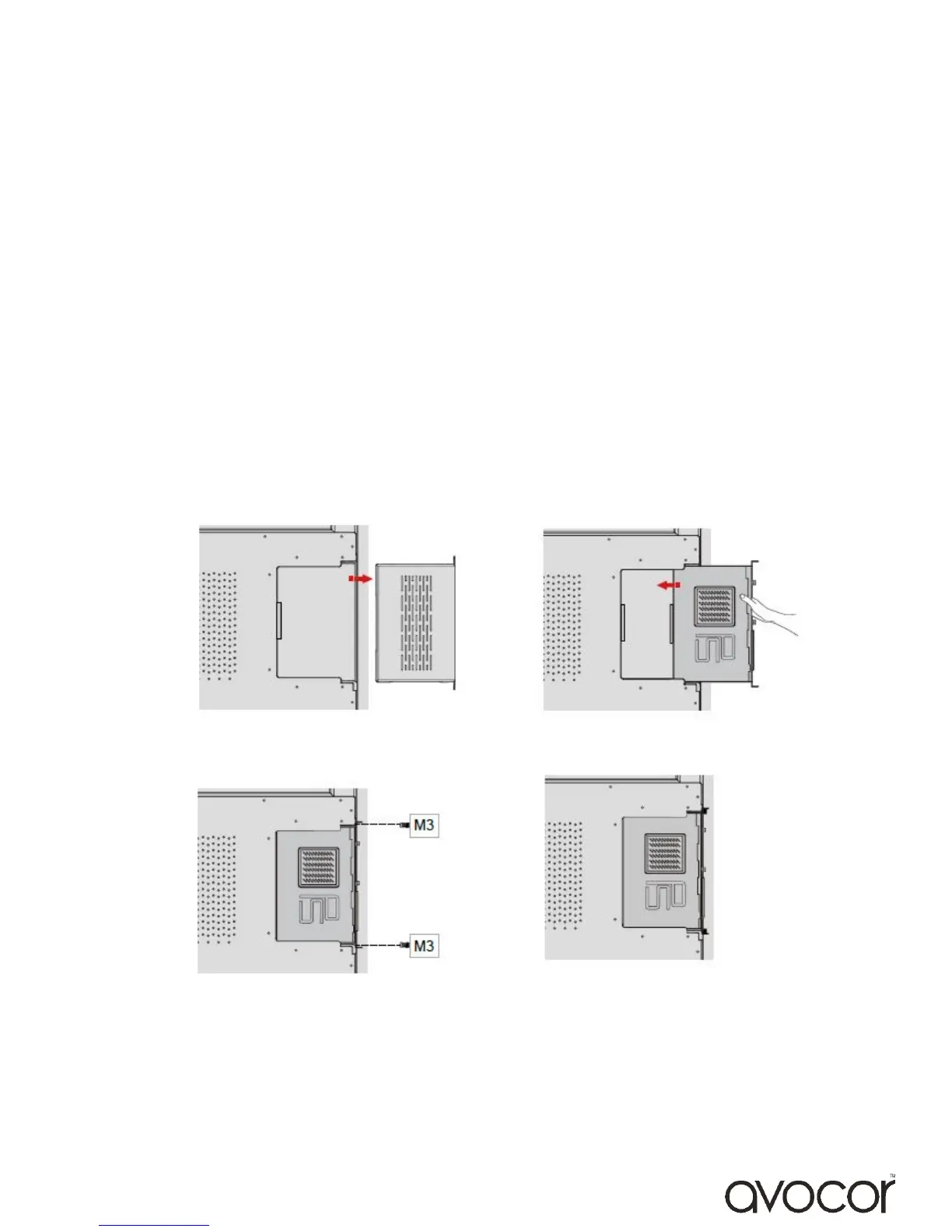

Step 2
Step 3
Step 4
Step 5
