AVOCOR VTF-6500 - Uart

71
Status
When TCP mode is set as Server mode or Client mode, the UDP mode would be disabled automatically, and vice
versa.
Local Port
Assign the port number here to allow the device to open for the remote site to send data via UDP. The IP address
of the remote site must be set in the Remote Address table, or NET2UART will ignore its data.
Remote Address
The Remote Address table allows 10 entries of remote site IP addresses and ports. When NET2UART is sending
data to network, the data will be sent to each remote IP address entered in the table simultaneously. The port
number is the remote site port number that NET2UART will send data to via UDP.
If the port number is set as “0”, the NET2UART will use the port number that the remote site sends data from as
the destination port number, or use the local port number as the destination port number if the remote site has not
sent data to NET2UART.

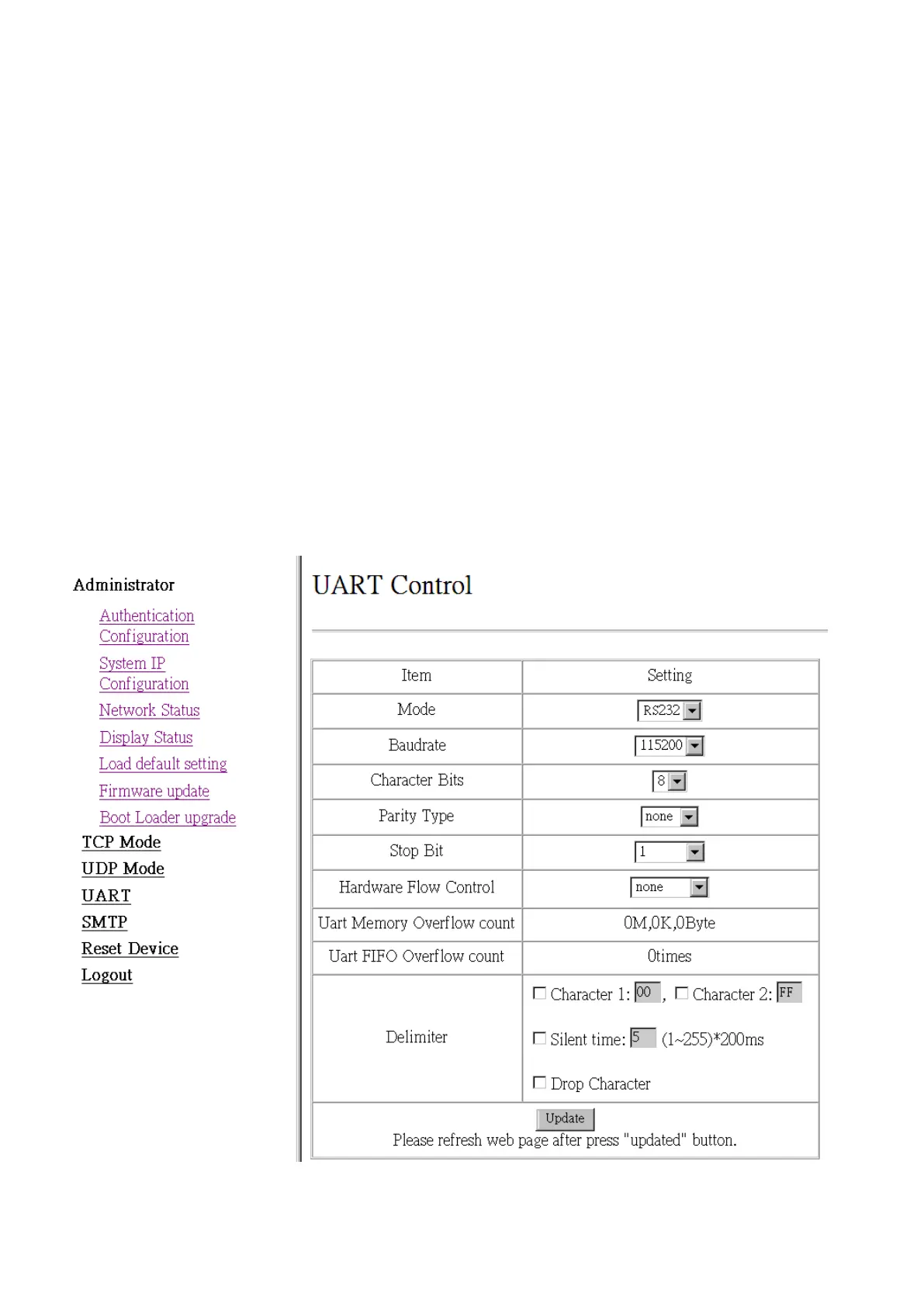

UART
