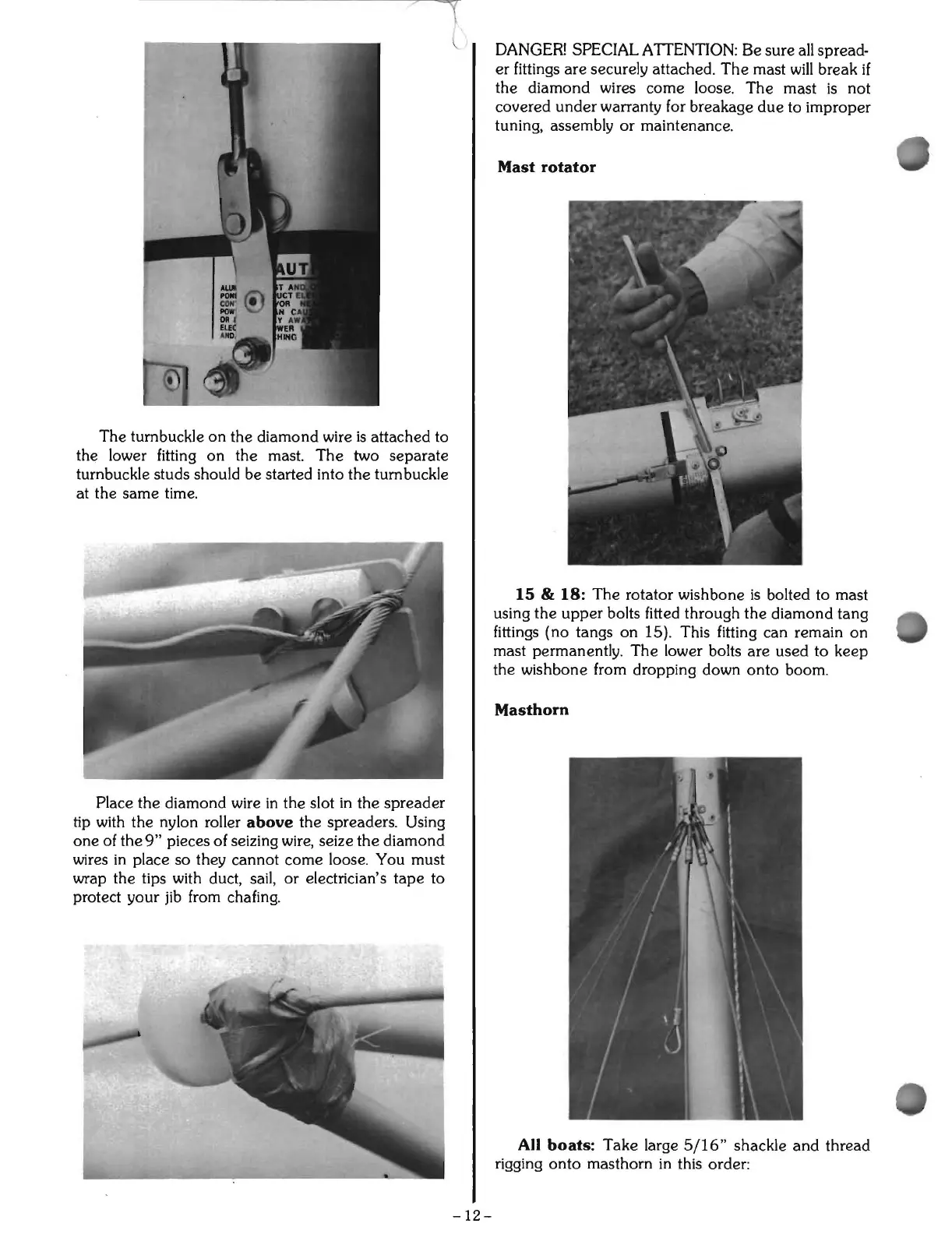

DANGER! SPECIAL ATTENTION: Be sure all spread-
er
fittings
are
securely attached.
The
mast
will
break if
the diamond wires come loose.
The
mast
is
not
covered
under
warranty for breakage
due
to improper
tuning, assembly
or
maintenance.
Mast rotator
The
turnbuckle
on
the diamond wire
is
attached to
the lower fitting
on
the mast.
The
two
separate
turnbuckle studs should be started into
the
turnbuckle
at the
same
time.
Place
the
diamond wire
in
the slot
in
the
spreader
tip with the nylon roller
above
the spreaders. Using
one
of the
9"
pieces of seizing wire, seize
the
diamond
wires
in
place so they cannot come loose. You must
wrap the tips with duct, sail,
or
electrician's
tape
to
protect your
jib
from chafing.
15
& 18:
The
rotator wishbone
is
bolted to mast
using
the
upper
bolts fitted through
the
diamond
tang
fittings (no tangs on 15). This fitting can remain
on
mast permanently.
The
lower bolts
are
used
to
keep
the wishbone from dropping down
onto
boom.
Masthorn
All boats: Take large
5/16"
shackle
and
thread
rigging
onto
masthorn
in
this order:
-12-
