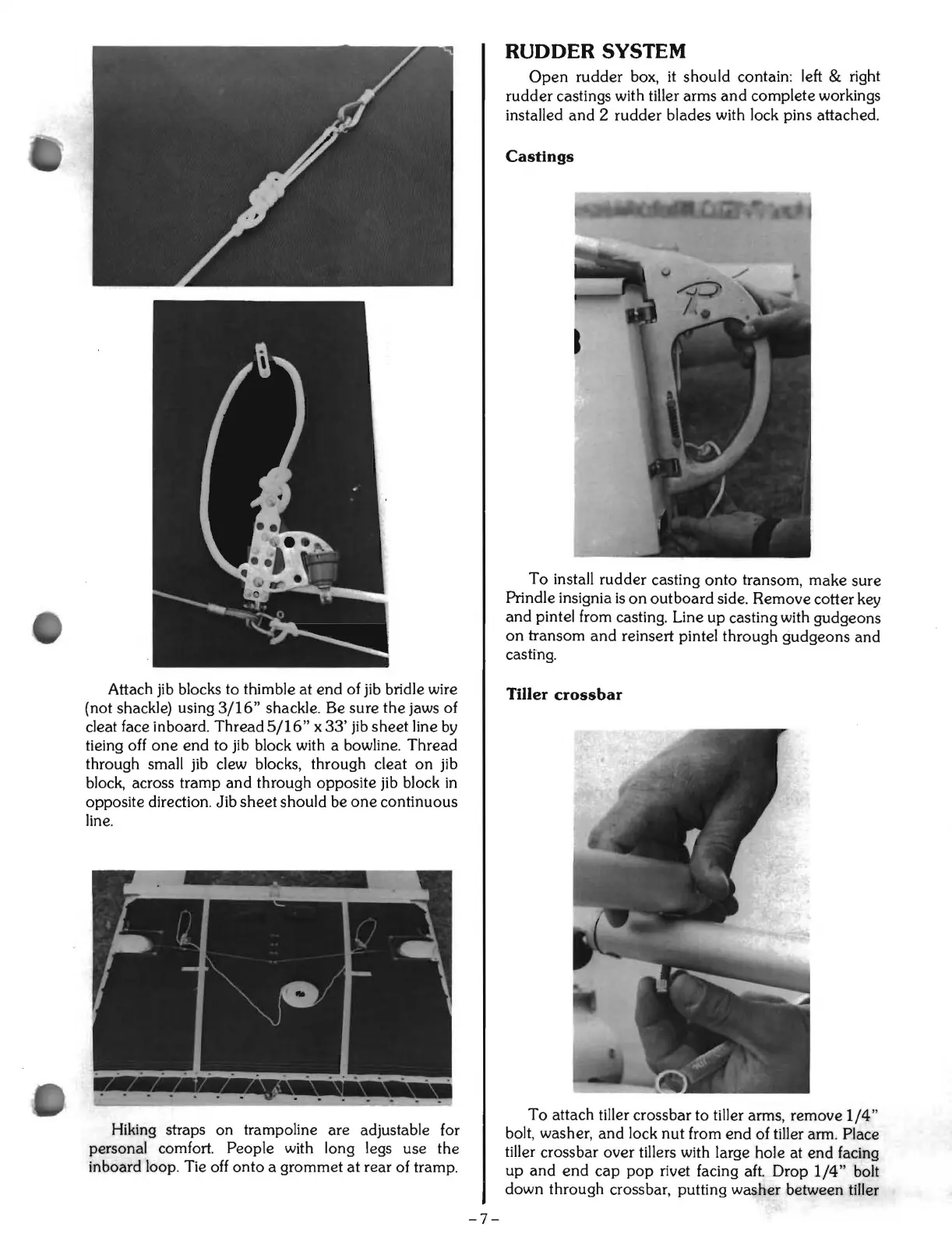

Attach jib blocks to thimble at
end
of jib bridle wire
(not shackle) using
3/16"
shackle. Be
sure
the
jaws of
cleat face inboard.
Thread
5/16"
x 33' jib
sheet
line
by
tieing off
one
end
to jib block with a bowline.
Thread
through small jib clew blocks, through cleat
on
jib
block, across tramp
and
through opposite jib block
in
opposite direction. Jib
sheet
should be
one
continuous
line.
Hiking straps
on
trampoline are adjustable for
personal comfort. People with long legs use the
inboard loop. Tie off
onto
a grommet
at
rear of tramp.
-7-
RUDDER SYSTEM
Open
rudder
box,
it
should
contain: left & right
rudder
castings with tiller arms
and
complete workings
installed
and
2
rudder
blades with lock pins attached.
Castings
To
install
rudder
casting
onto
transom,
make
sure
Prindle insignia
is
on
outboard
side.
Remove
cotter key
and
pintel from casting. Line
up
casting with
gudgeons
on
transom
and
reinsert pintel
through
gudgeons
and
casting.
Tiller
crossbar
To
attach tiller crossbar to tiller arms, remove
1/4"
bolt, washer,
and
lock
nut
from
end
of tiller arm. Place
tiller crossbar
over tillers with large hole at
end
facing
up
and
end
cap
pop
rivet facing af
t.
Drop
1/4
" bolt
down through crossbar, putting washer between tiller
