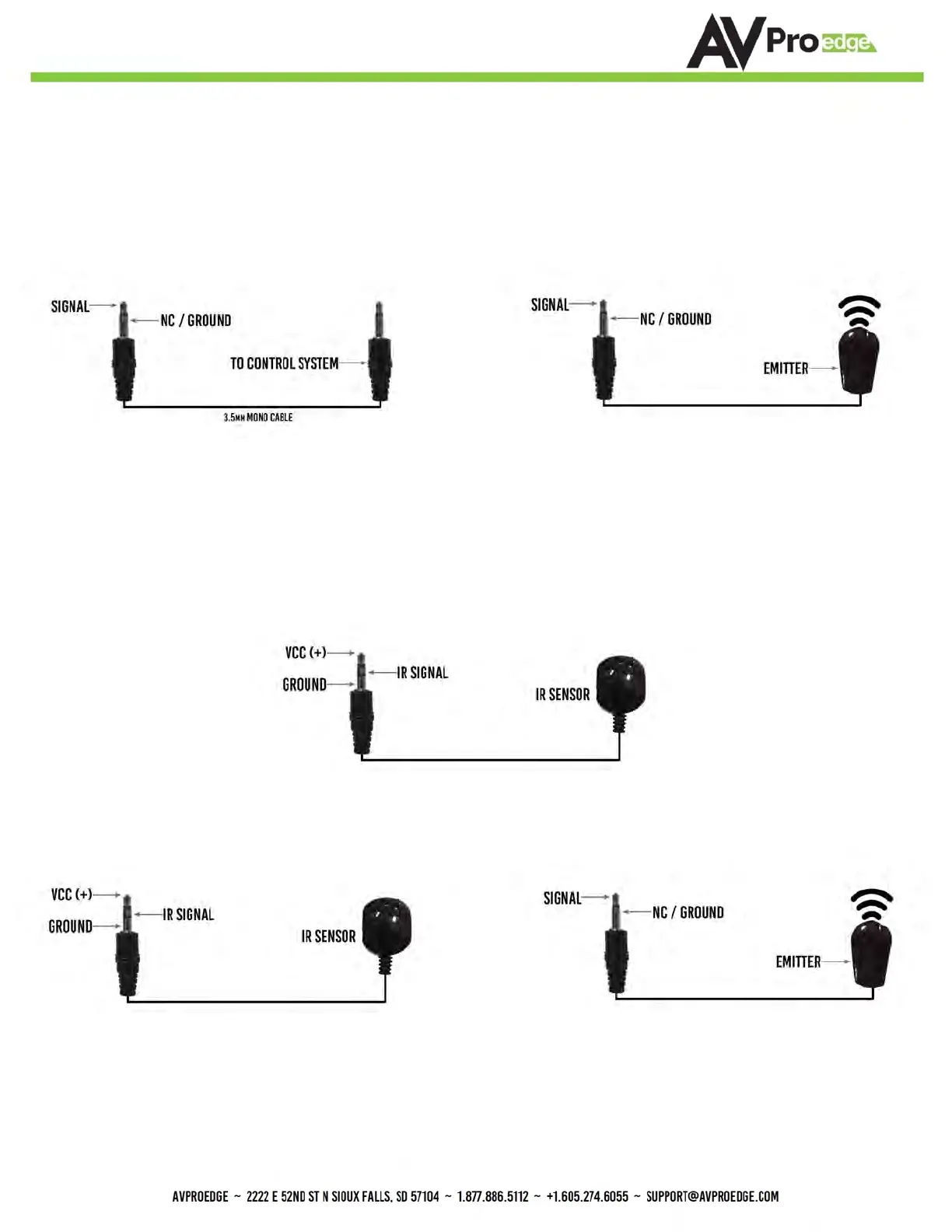

AVPro Edge AC-EX40-444-KIT - IR Connection Diagrams

■ IR Connections to AC-EX40-444-T (Transmitter)
■ IR Connections to AC-EX40-444-R (Receivers)
IR IN Direct Connect (I-PASS)
IR OUT Emitter (Non-Flashing)
IR IN w/ Receiver Eye ("IR-EYE" MODE)
IR IN (IR-EYE Only)
IR OUT Emitter (Non-Flashing)
AC-EX40-444-KIT
Page 16
