Appendix B: USBNENAJack Box Hardware Views
The USB NENA Jack Box features the following connections:

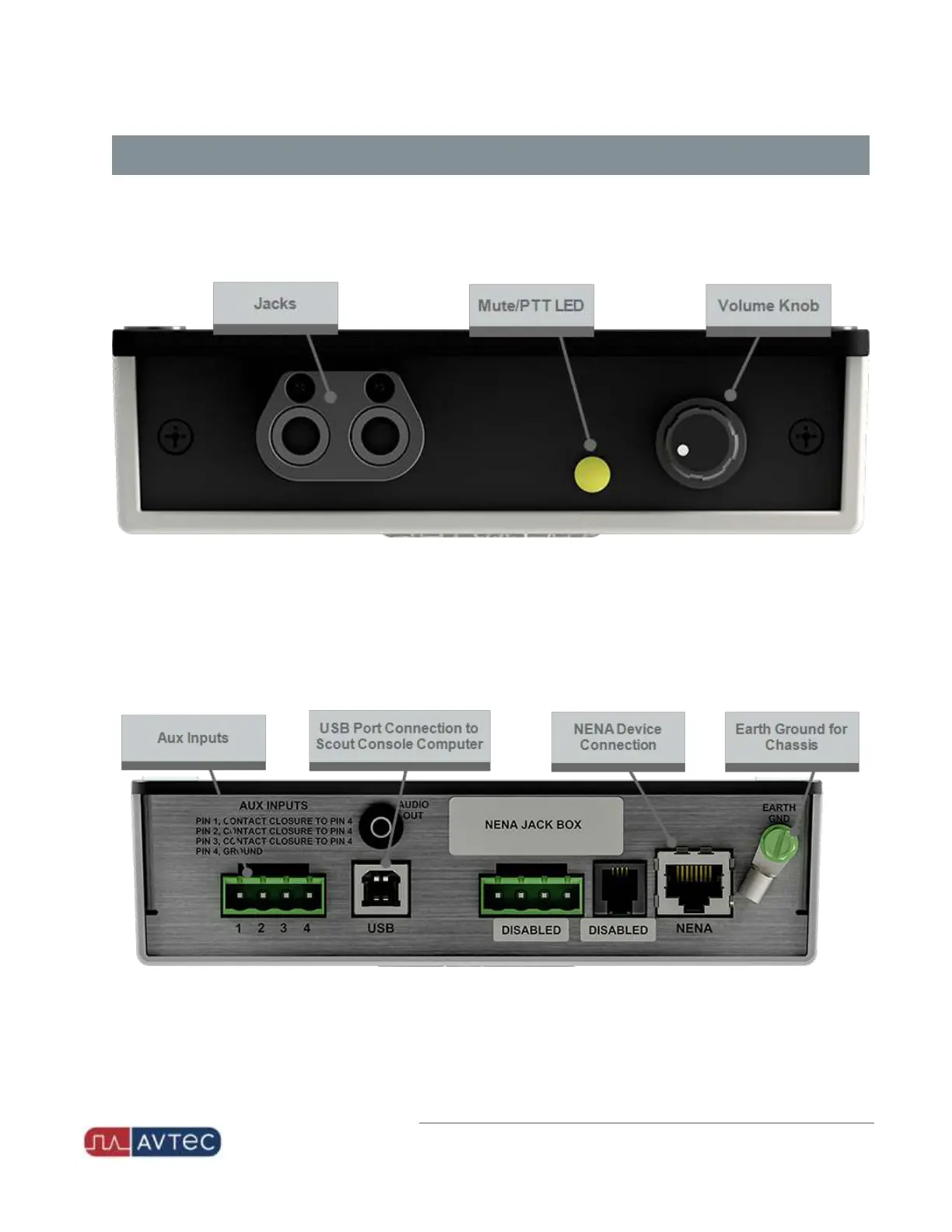

USB NENAJack Box – Front Panel
l
Jacks – Connects the jack box to a handset or headset
l
Mute/PTTLED – Illuminates during PTT
l
Volume Knob – Adjusts dispatcher volume
USB NENAJack Box – Back Panel
18
