2. Connecting the TV (and VCR)
The receiver provides a variety of audio/video connection methods.

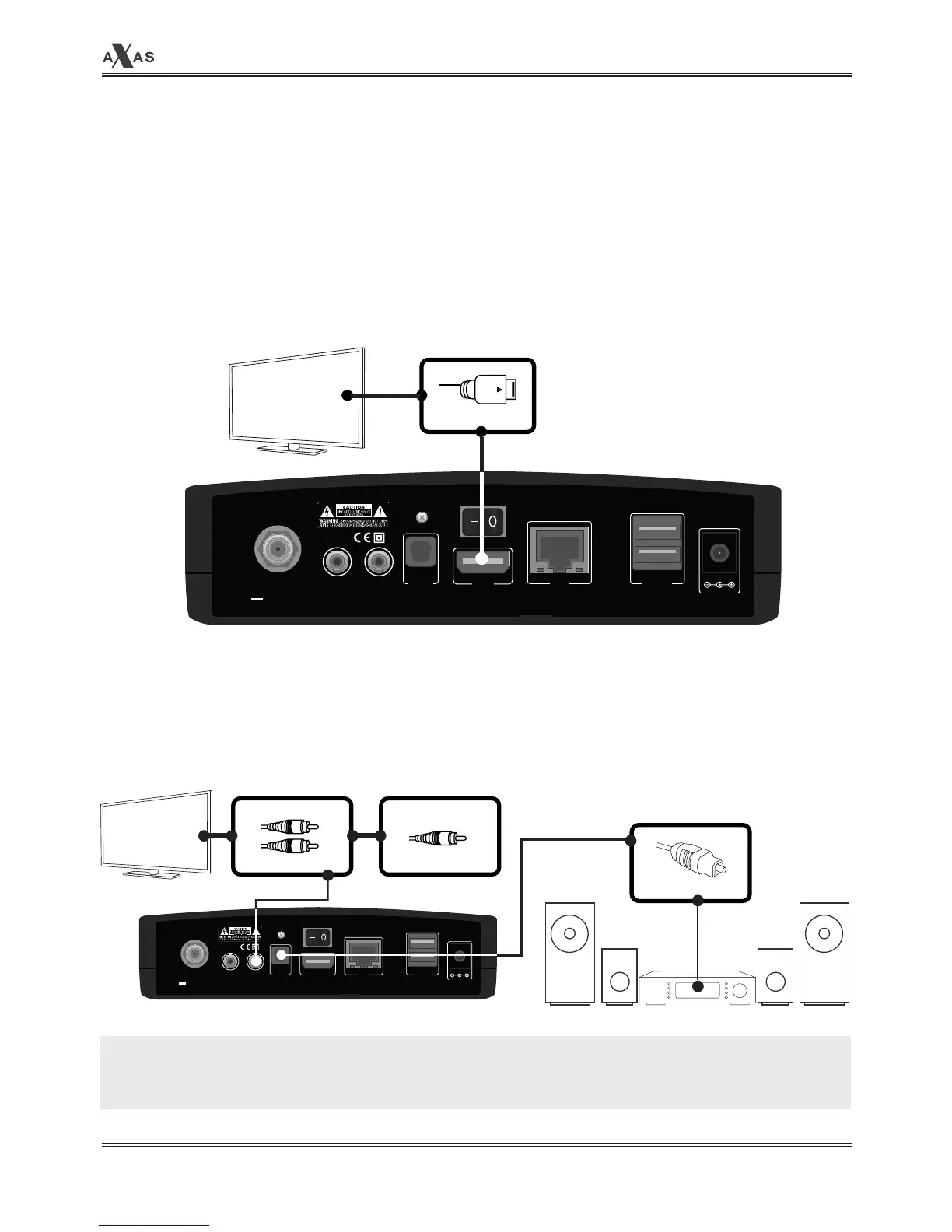

A. Connecting TV via HDMI cable
For the sake of the best picture quality, especially for digital TV, HDMI connection is recommended.
Most HDTVs Have HDMI connectors to ensure the highest picture quality. In the rear panel of the
receiver. one HDMI connector is available for this purpose. Connect your TV to the receiver. using
a HDMI cable as follows.
B. Connecting TV via Component Cable
The secondly recommend TV connection for digital TV is via component cable (YPbPr). However,
unlike the HDMI connection which delivers audio and video signal at the same time, YPbPr con-
nection requires additional audio connection either via RCA cable (Stereo L/R) or S/PDIF as follows.
NOTE: When you have an A/V receiver with S/PDIF digital audio input, this connection is recommended
to enjoy the best audio quality, especially for the Digital sound.
COMPONENT VIDEO/
AUDIO
ON/OFF
LNB IN
13/18V, 22KHZ
Max 400mA
HDMI LAN USB x 2S/PDIF
DC 12V,3A
HDMI
COMPONENT VIDEO/
AUDIO
ON/OFF
LNB IN
13/18V, 22KHZ
Max 400mA
HDMI LAN USB x 2S/PDIF
DC 12V,3A
S/PDIF
AUDIO VIDEO
To Next Page
