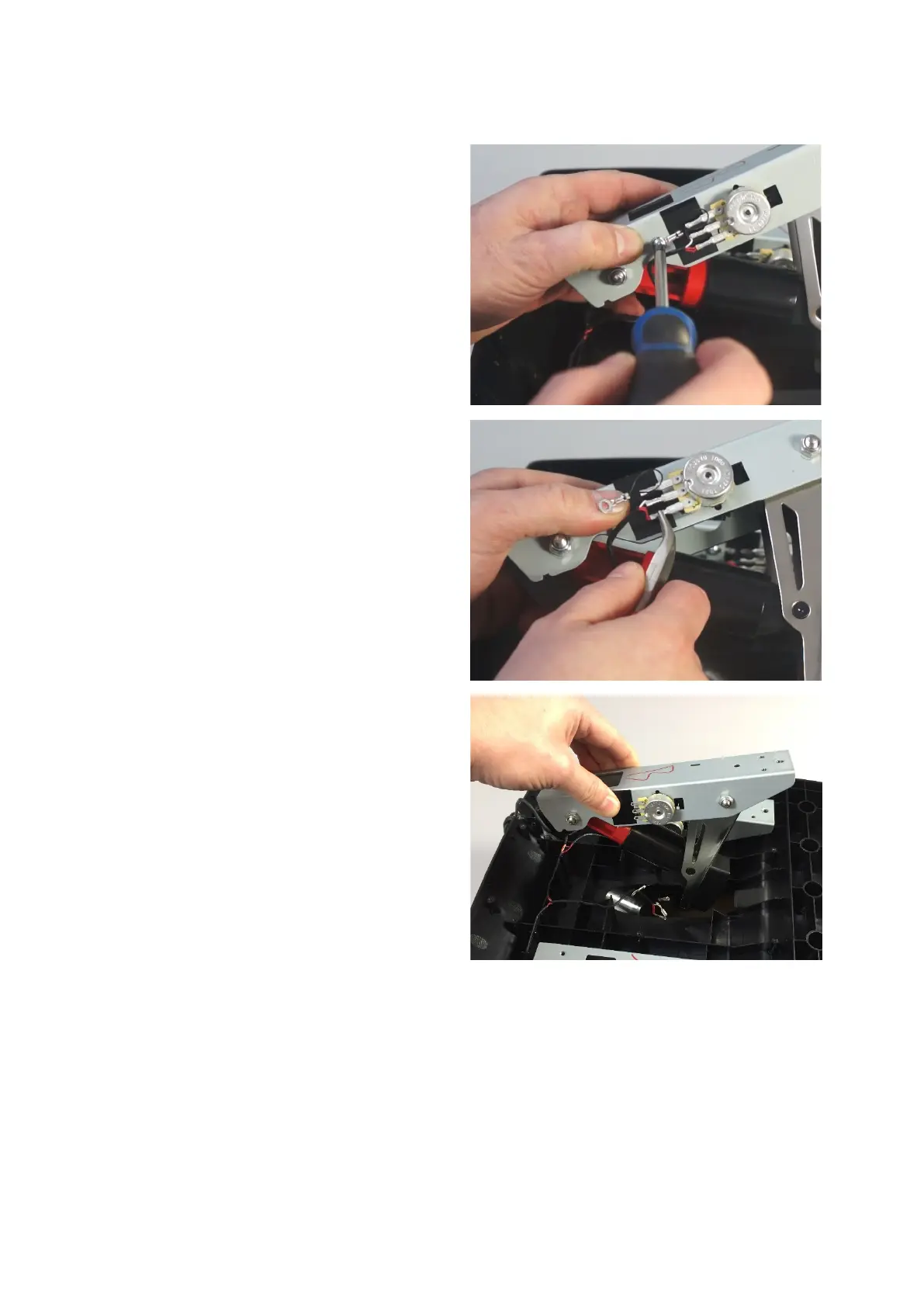

Step 4 – Remove brake pedal unit
Use a No.2 Phillips screwdriver to remove the screw
that secures the black ground wire to the brake pedal
metal base.
to damage the wires.
Use your thin nosed pliers to disconnect the spade
connectors
from the potentiometer.
Be careful so you do not damage the wires.
(You might want to make a note of where the wires go
in case you want to revert to t
he original setup.)
You can now remove the brake pedal unit from the
main
assembly.
