4 - CONNECTOR PIN ASSIGNMENTS
This chapter describes the connector pin assignments for the different ports of
the AX3000 Models 70.

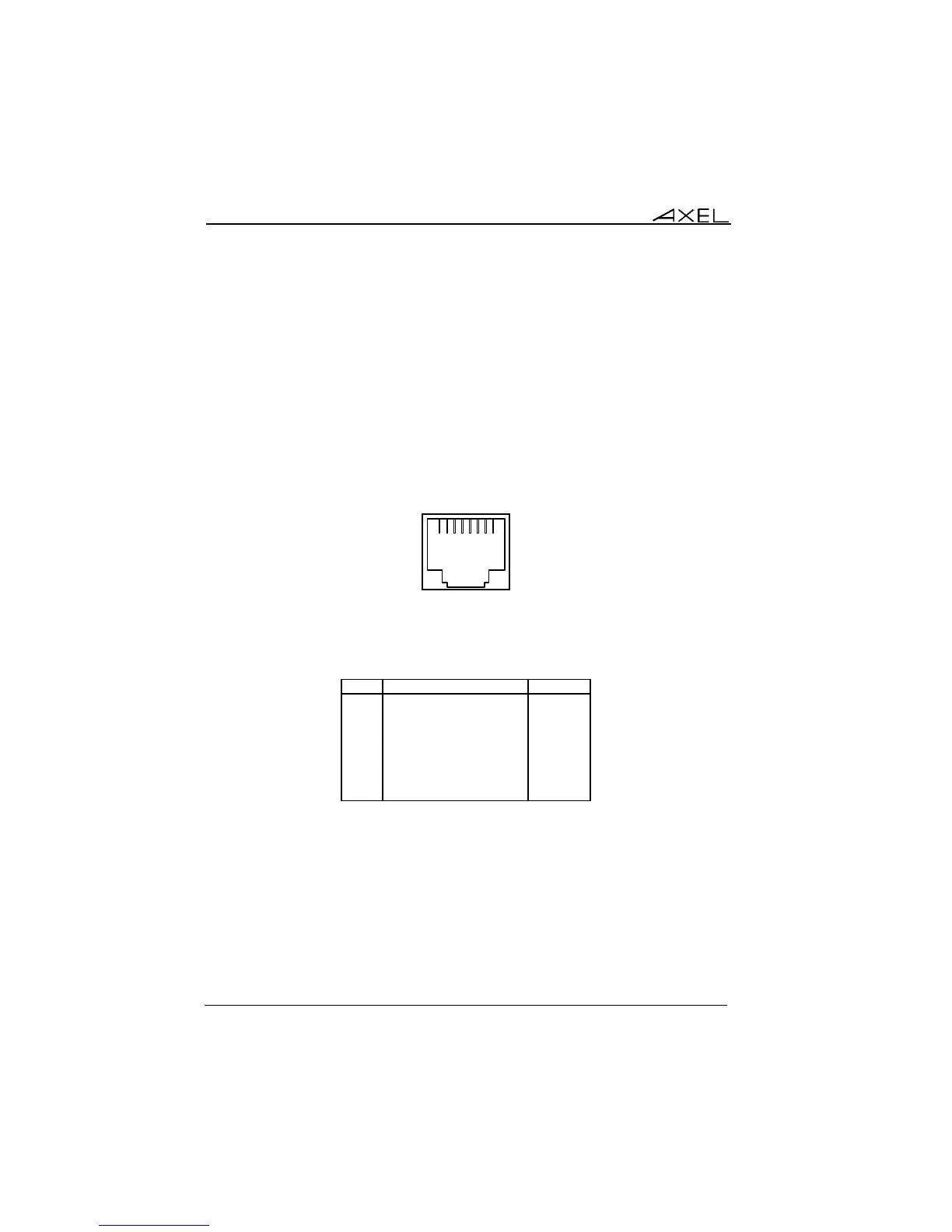

4.1 - ETHERNET PORT RJ45 (NET)
Recommended wiring is a non-shielded twisted-pair cable (UTP), category 3
or 5
1 2 3 4 5 6 7 8
RJ45 connector
(Models 70 rear panel)
Note: the maximum length of a 10/100BaseT cable is 100 meters (330 feet).
Pin Signal Name Direction
1 TX+ (Transmitted Data) Input
2 TX- (Transmitted Data) Input
3 RX+ (Received Data) Output
4 --- ---
5 --- ---
6 RX- (Received Data) Output
7 --- ---
8 --- ---
12
Installation Guide - Models 70
