Connector Pin Assignments

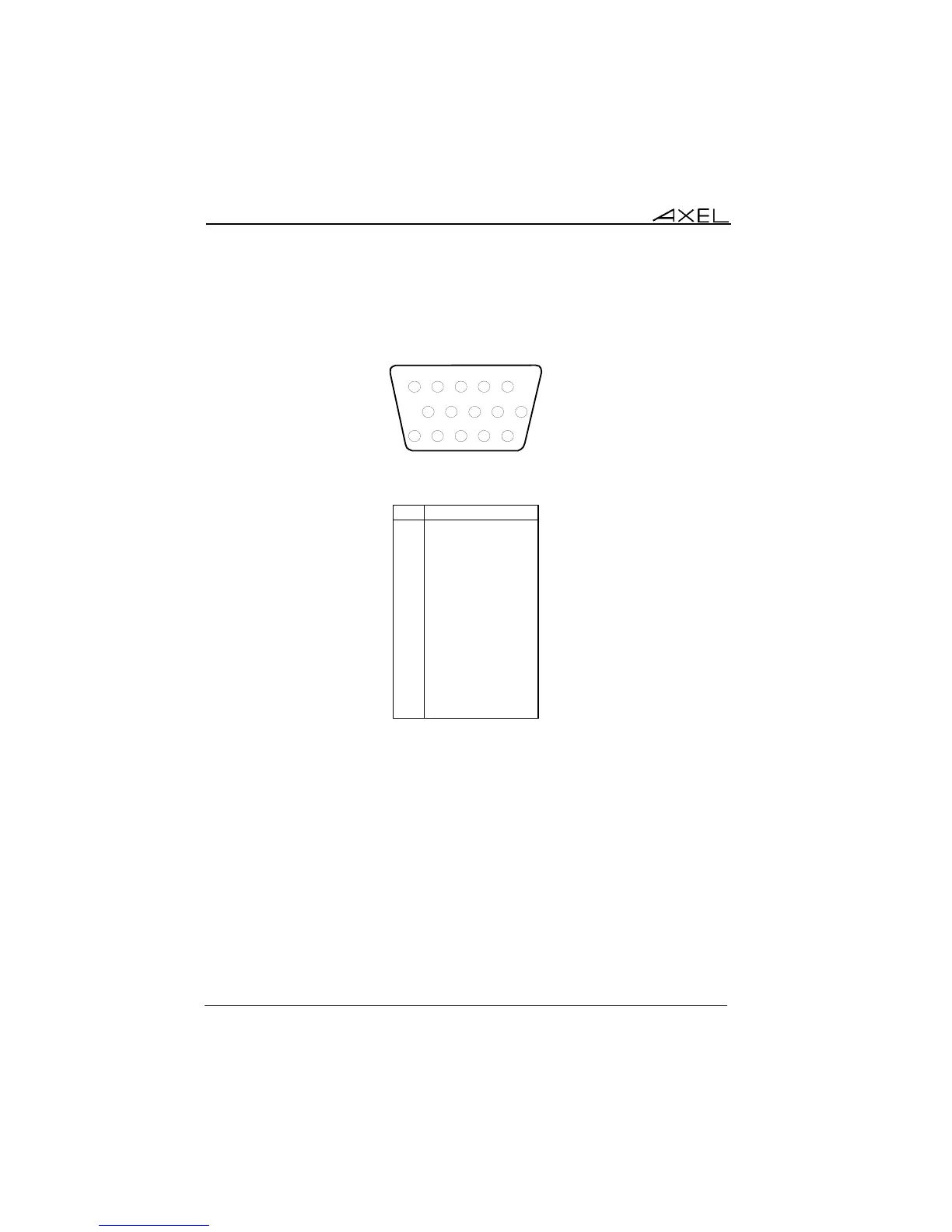

4.4 - VIDEO INTERFACE

The AX3000 video interface is VGA and SVGA compatible:

5 4 3 2 1

10 9 8 7 6

15 14 13 12 11

VGA/SVGA connector

(Models 70 rear panel)

Pin Signal name

1 Red

2 Green

3 Blue

4 Not Connected

5 Ground

6 Ground

7 Ground

8 Ground

9 Not Connected

10 Ground

11 Not Connected

12 CRT SDA

13 Horizontal sync.

14 Vertical sync.

15 CRT SCL

Installation Guide - Models 70
