Axel AX3000 Installation Guide

Connector Pin Assignments

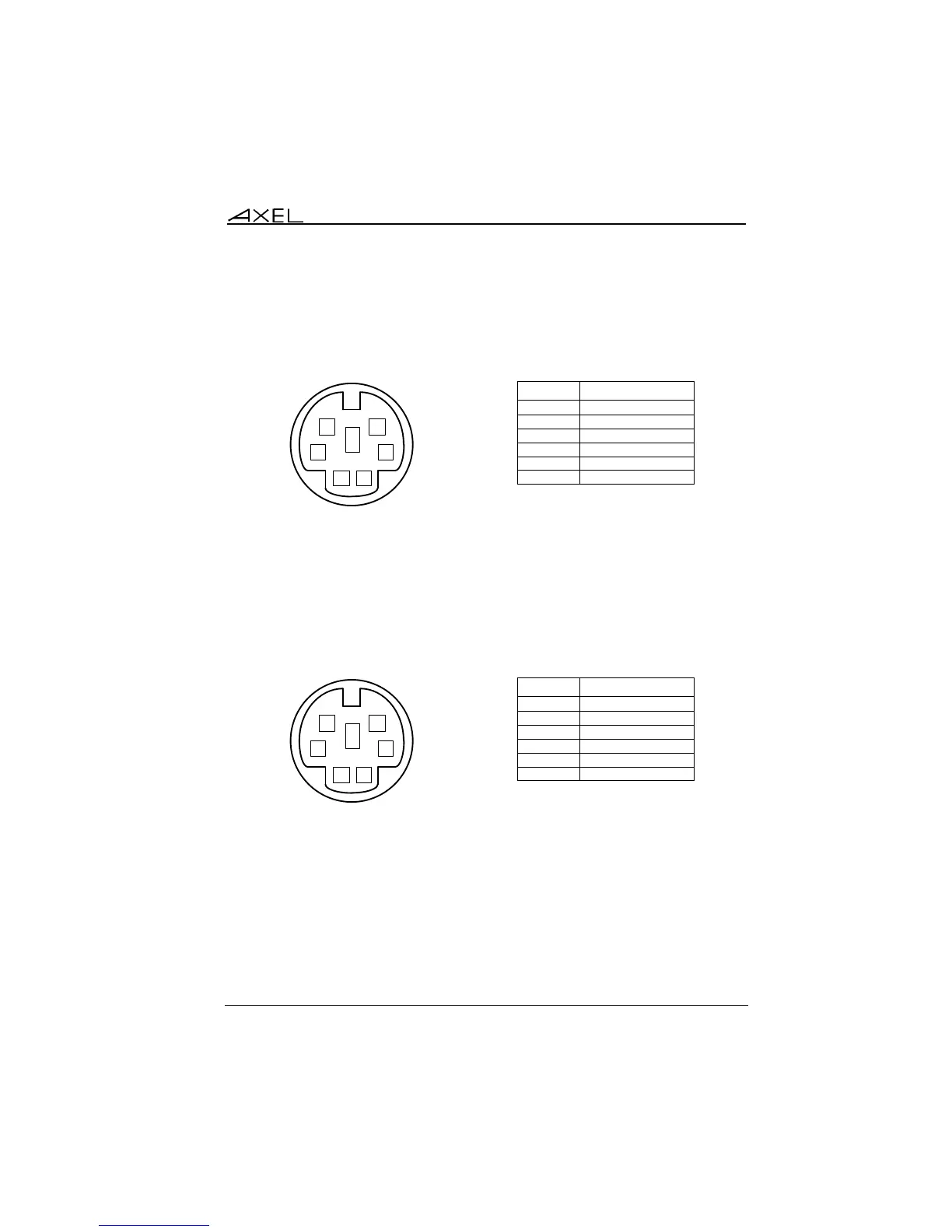

4.2 - KEYBOARD INTERFACE
The AX3000 keyboard interface is a Mini-DIN connector. To connect a
keyboard which has a DIN connector, use a DIN-to-Mini-DIN adaptor:
Pin Signal name
1 Data
2 ---
3 Ground
4 + 5 V DC
5 Clock
6 ---
12
34
56
Keyboard connector
(Models 70 rear panel)
4.3 - MOUSE INTERFACE
The AX3000 mouse interface is a Mini-DIN connector:
Pin Signal name
1 Data
2 ---
3 Ground
4 + 5 V DC
5 Clock
6 ---
12
34
56
Mouse connector
(Models 70 rear panel)
Installation Guide - Models 70
13
