Installation
2 - INSTALLATION
This chapter provides information and instructions to install the Axel Terminal.
2.1 - DESCRIPTION

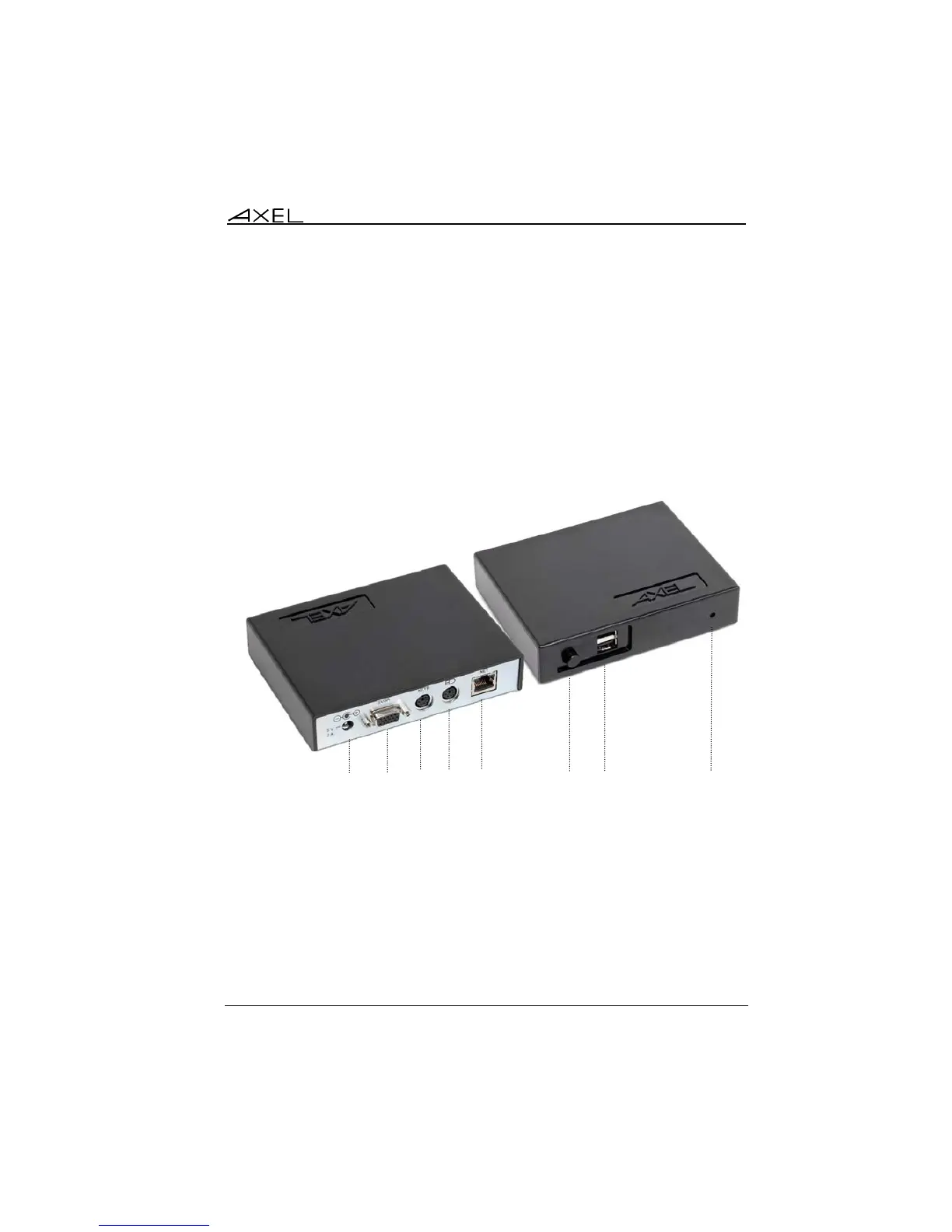

Rear Panel: Front Panel:
- 1 power connector, - 1 power switch,
- 1 VGA or SVGA connector, - 2 USB ports,
- 1 PS/2 keyboard connector, - 1 green LED.
-
1 PS/2 mouse connector.
Power VGA Kbd Mouse Network On/Off USB Power-on LED
(1) (2) (3) (4) (5)
Pow
er Supply:
5 V~
2 A
"Low Voltage" connectors:
(1) VGA shielded
(2) Keyboard unshielded
(3) Mouse unshielded
(4) Network unshielded
(5) USB shielded
Installation Guide - Models 70
3
