genius
ENGLISH
pag.16

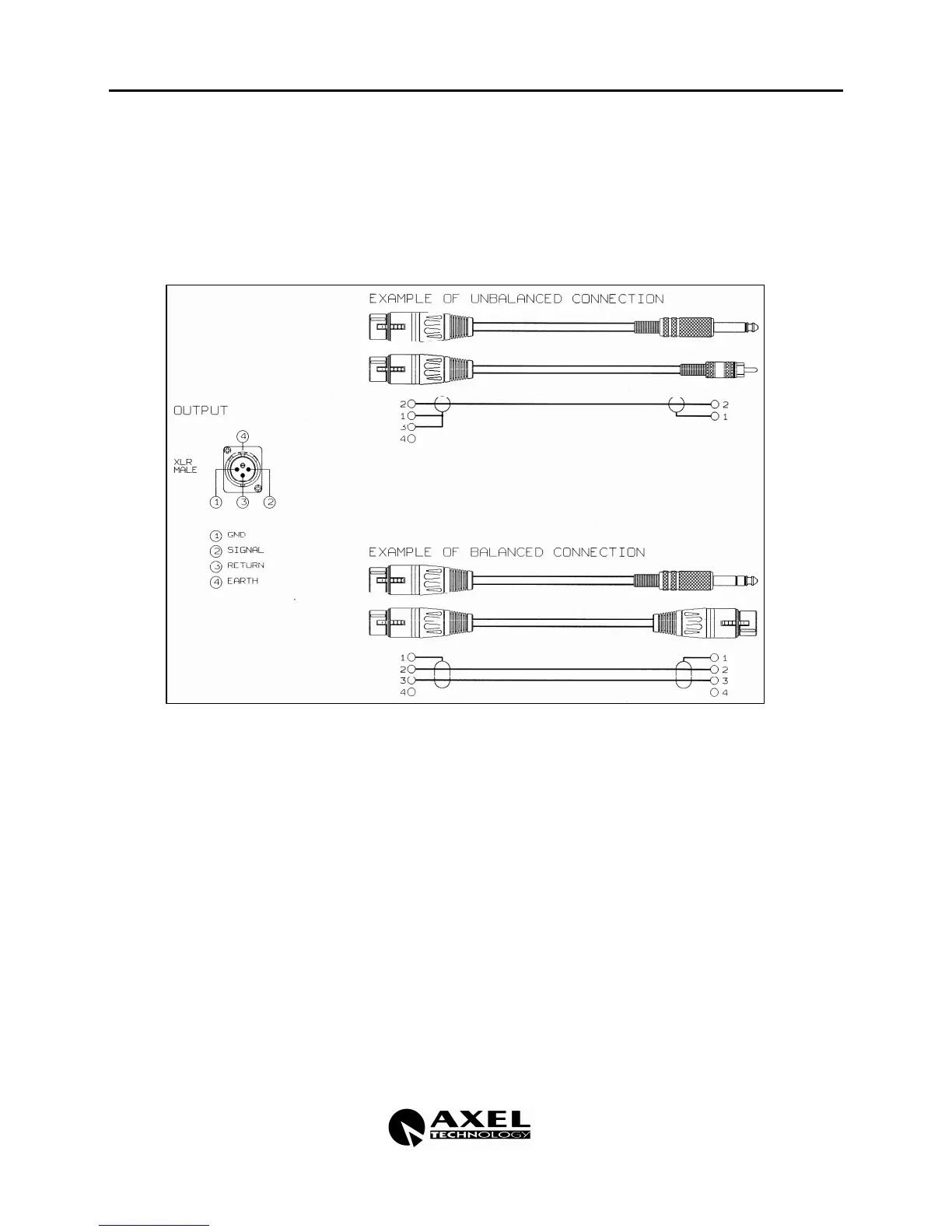

7.2 OUTPUTS
genius
features an XLR male balanced output active with 100Ω impedance and a DRAW
output on PIN RCA for general purposes.
The output features a +6 dB amplifying section controlled by jumper.
We always recommend, when possible, to realise balanced connections with good quality
wires.
