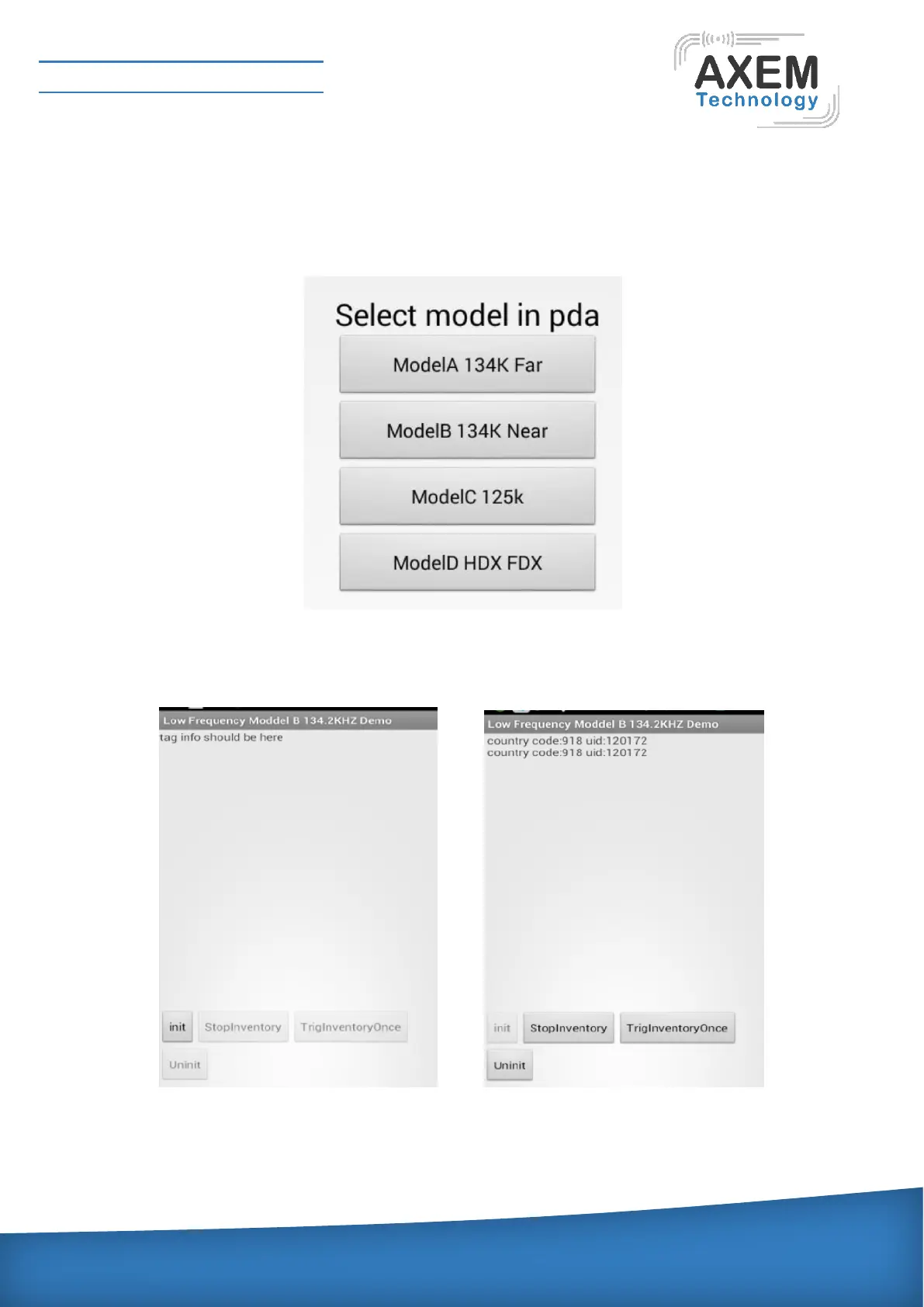

4.3 RFID LF Card Identification
RFID LF module supports working frequency 30kHz~300kHz, typical working frequency is 125KHz
and 134KHz. The user can choose frequency according to demand. The demo interface is shown
as below:
LF 134K(HDX) detection: put 134K label horizontally on the table, align antenna to LF 134K label,
click “Model B 134K Near”, enter into ”Low Frequency Model B 134.2KHz Demo” interface, then click
“init”,initialize module, then click “Trig lnventory Once”, can read label once.
LF 125K detection: put 125K label horizontally on the table, align antenna to LF 125K label, “ModelC
125k”, enter into “Low Frequency Moddel C 125KHz Demo”interface, then click “init”, initialize
module, then click “startlnv”, can read label once.
