SBC82621 Socket370 Half-size All-in-One CPU Card User’s Manual
5
1
2
3
6
4
Keyboard Clock
GND
Keyboard Data
Mouse Data
VCC
Mouse Clock
CN7

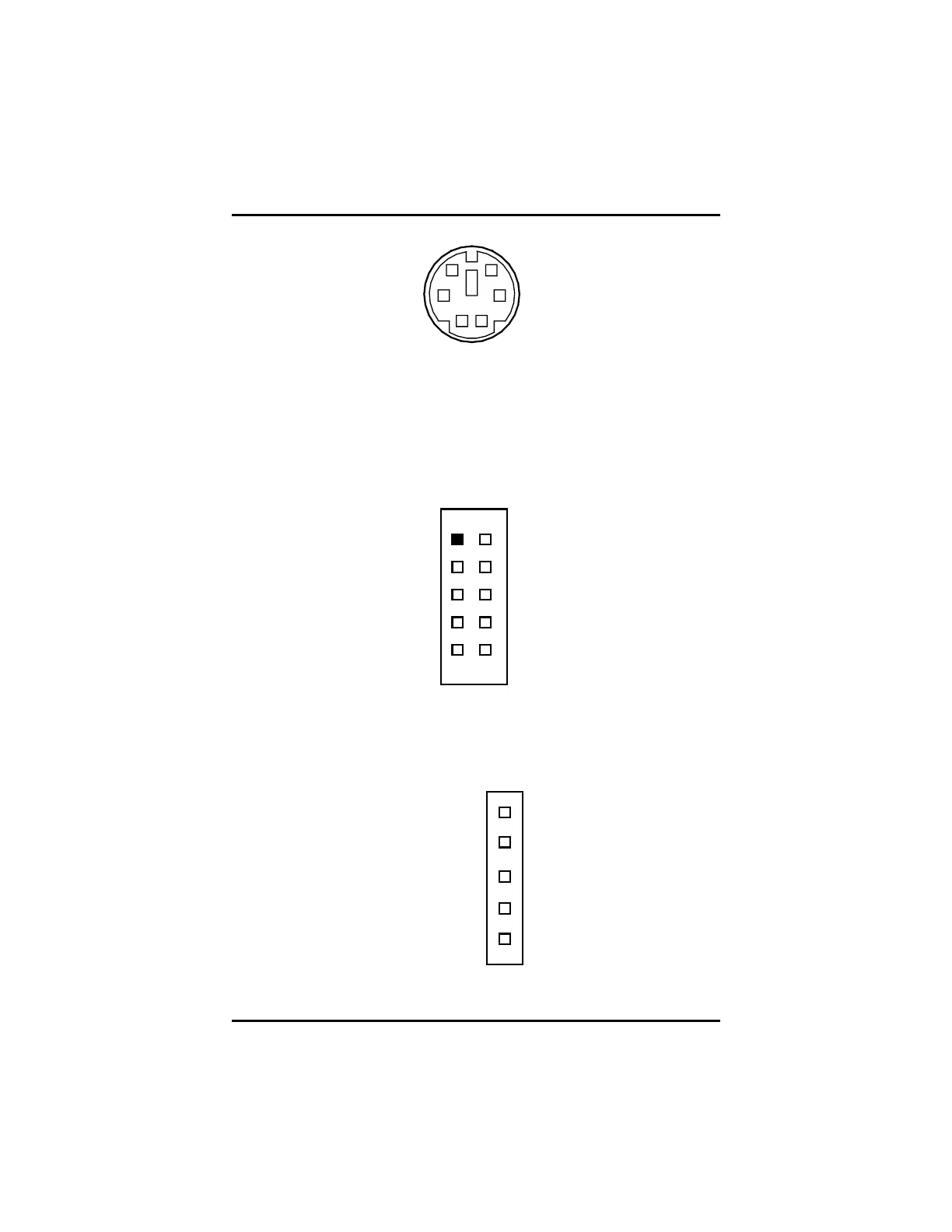

2.4.7 USB Connector
The Universal Serial Bus (USB) connector on the SBC82621 is
for installation of peripherals supporting the USB interface.
USB1 is the 10-pin USB connector on the SBC82621.
USB1
910
12
USB Power
USB P0-
USB P0+
USB GND
AGND
USB Power
USB P1-
USB P1+
GND USB
AGND
2.4.8 IrDA Connector
IR1 is a 5-pin IrDA connector for wireless communication.
IR1
1
2
5
4
3
+5V
N.C.
IRRX
GND
IRTX
Jumpers and Connectors
20
