AXIS A1001 installation with
dual magnetic locks and
external power supply

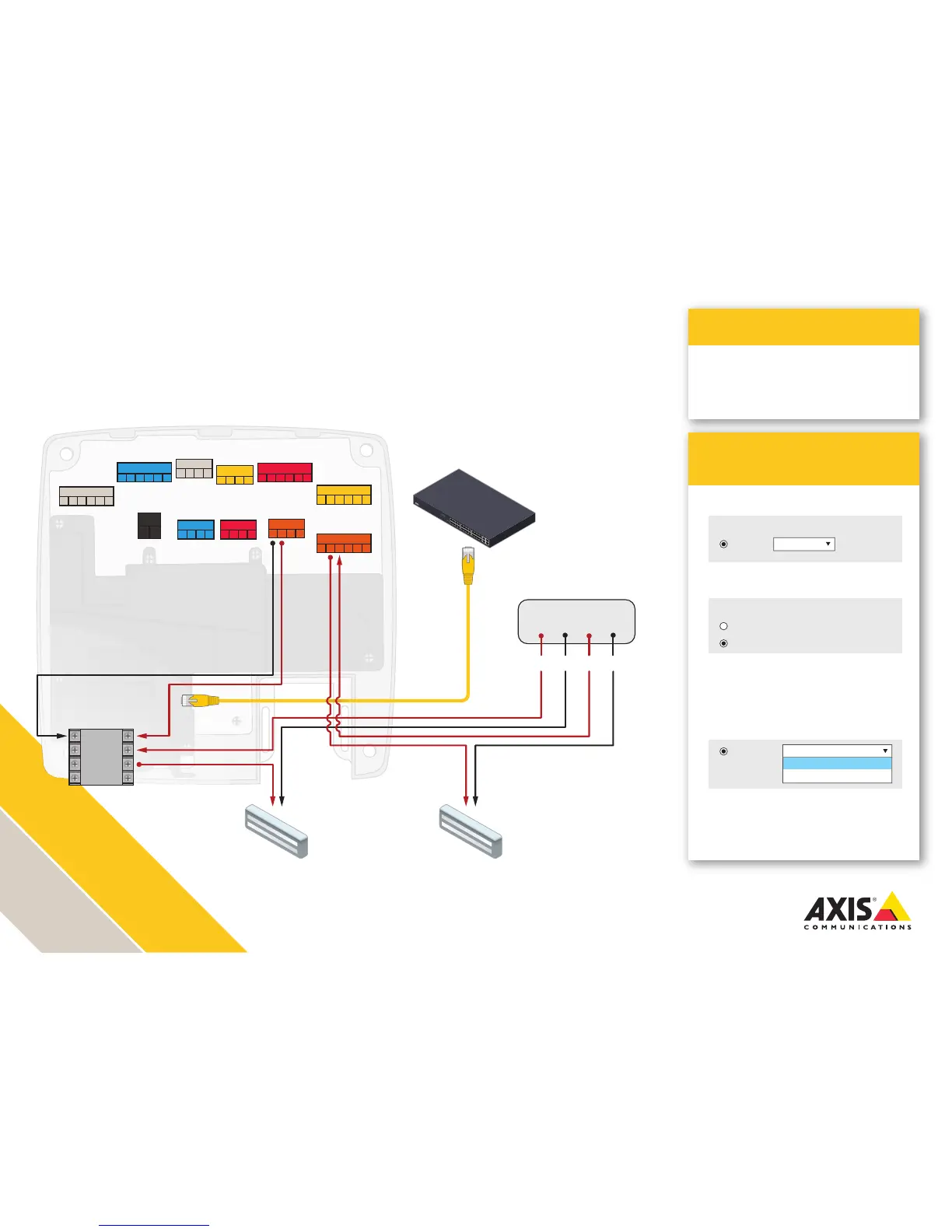

The AXIS A1001 lock output connects to the separate auxiliary
relay power input. 12/24 volts DC+ from a separate door power
supply connects to the C terminal of the slave relay. This transfers
to the NO terminal, pushing power to the lock.
Adhere to local life safety code in all installations.
Ensure that your power supplies and relays are rated for the intended purposes.
Illustration does not depict cabling for reader, REX, Door monitor, battery backup and UPS.
AXIS Entry Manager
Programming
Application
1. Congure Lock 1 for 12 V and Fail-secure
3. Depending on your lock type, congure
Lock 2 Relay for
Relay open = Locked for a fail-secure lock
Relay open = Unlocked for a fail-safe lock
4. Wire the LOCK connector and the
RELAY|PWR connector according to
the drawing
2. Congure Lock 2 for Relay
>
Two-door solution with high current locks
>
Suggested for use with existing power and
relay
Lock 1:
12 V
Relay
Relay open = Locked
Relay open = Locked
Relay open = Unlocked
Fail-secure
Lock 2:
12 V
Relay
READER I/O 1
DOOR IN 1 DOOR IN 2
LOCK
+MIC- +SPK-
AUDIO
AUX
A- B+ A- B+ D0 D1
A- B+ A- B+ D0 D1
-
12
V
IO
3
IO
4
IO
5
IO
6
READER DATA 1
READER DATA 2
DC IN
RELAY | PWR
*REL*- -
12
V
24
V
- H1 - H2
- IN1 - IN2 - IN3 - IN4
- +
- 3V
IO
1
IO
2
READER I/O 2
-
12
V
IO
7
IO
8
IO
9
IO
10
12/24 volt
Magnetic Lock
Lock 1
12/24 volt
Magnetic Lock
Lock 2
Door Power Supply
12/24+
12/24-
12/24+
12/24-
PoE Switch
Relay
POS+
C
NC
NO
NEG-
C
NC
NO
