Axis M1103 - Hardware Overview

Page 4 AXIS M11 Series
Hardware overview

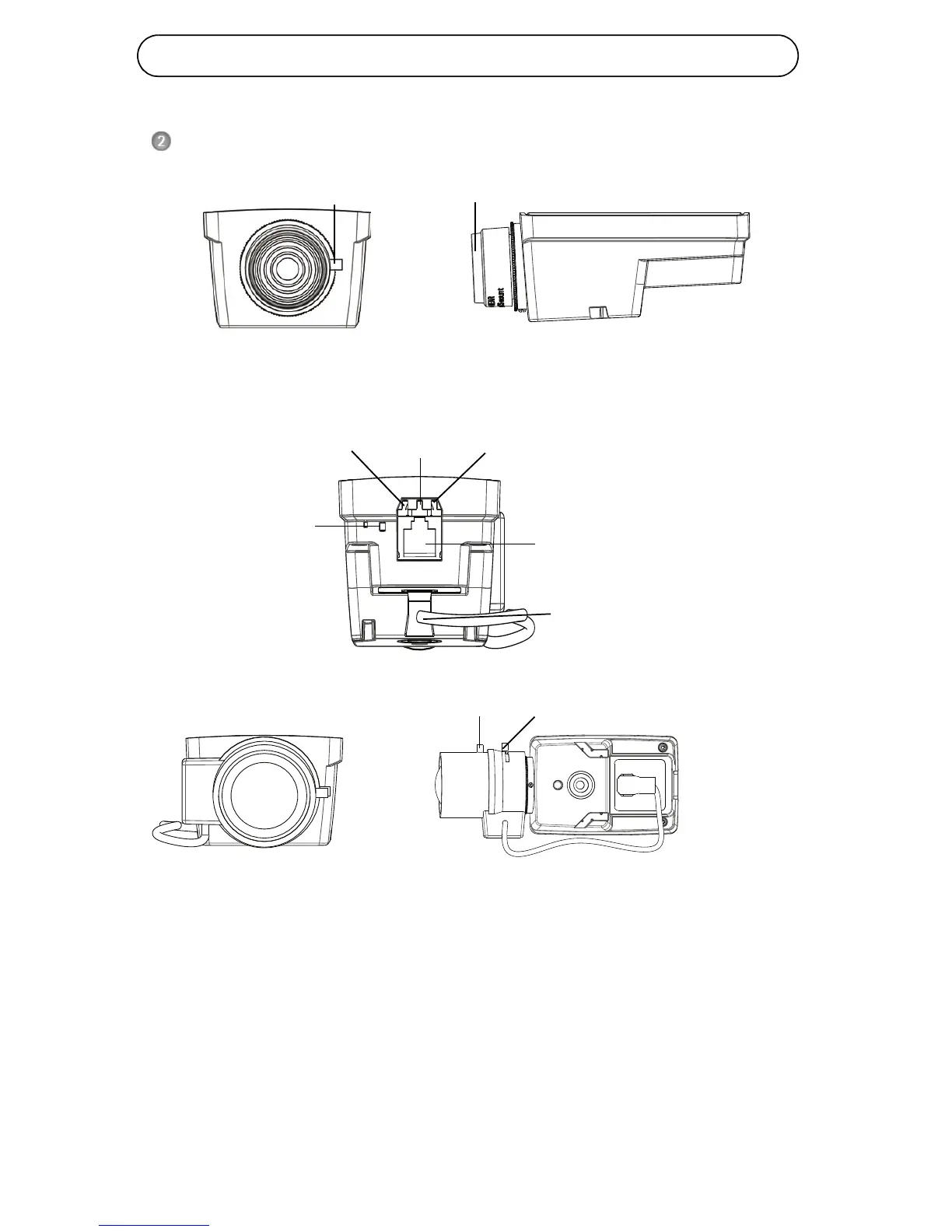

Dimensions (HxWxD)
AXIS M1103/AXIS M1104 2.8 mm: 43 x 61 x 107 mm (1.7" x 2.4" x 4.2")
AXIS M1103/AXIS M1104 6 mm: 43 x 61 x 110 mm (1.7" x 2.4" x 4.3")
AXIS M1113: 43 x 61 x 140 mm (1.7" x 2.4" x 5.5")
AXIS M1114: 43 x 61 x 142 mm (1.7" x 2.4" x 5.6")
Network
Network
LED
Status
LED
Power
LED
Control
button
Iris connector
AXIS M1103/M1104
AXIS M1113/M1114
Focus pullerZoom puller
connector
(AXIS M1113/M1114)
Focus puller
Grip this part to adjust focus
